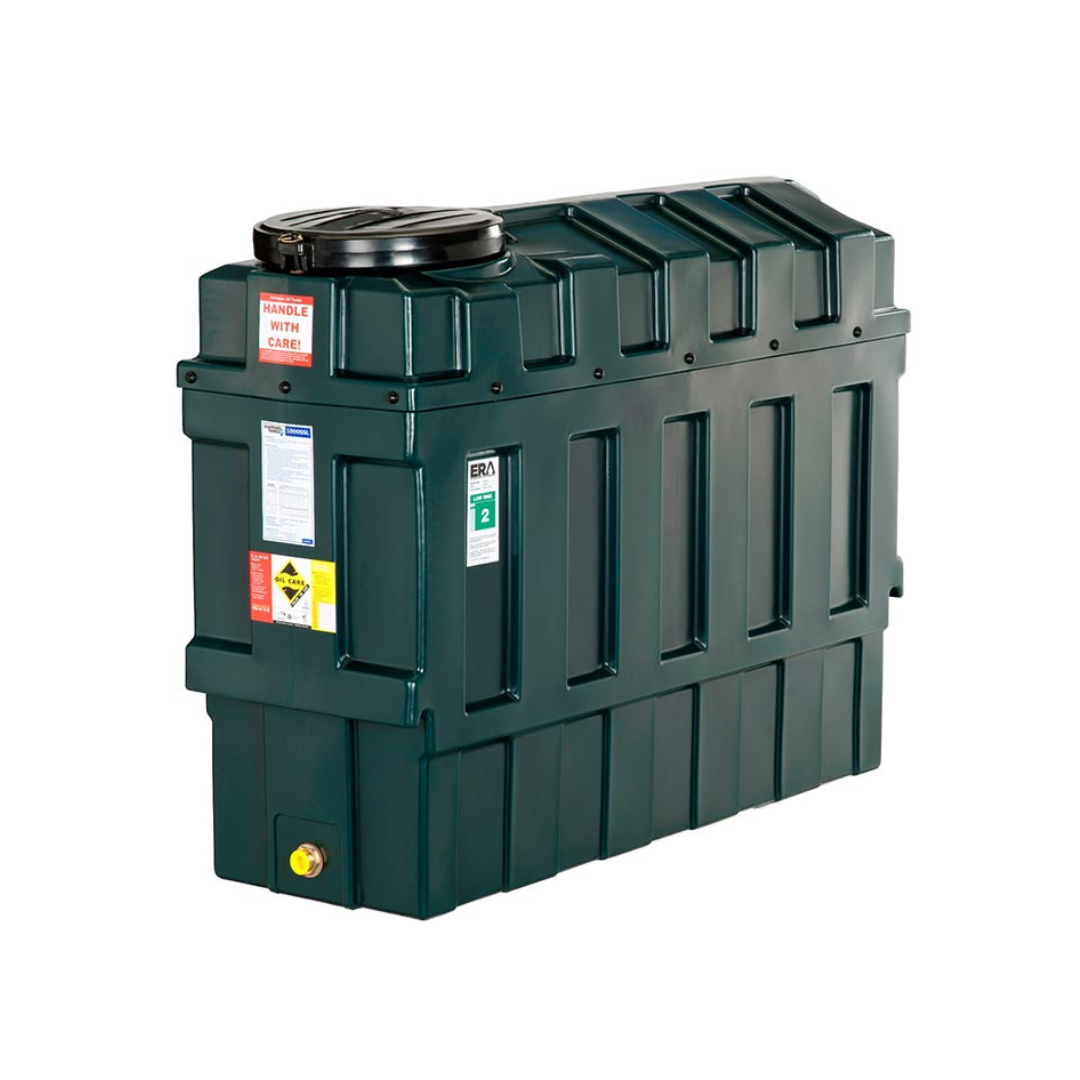

1000 Litre Slimline Bunded Oil Tank - Harlequin Diamond

1000 Litre Slimline Bunded Oil Tank - Harlequin Diamond

The Harlequin Diamond 1000SSL is a 1000 litre slimline bunded oil tank for storing heating oil in domestic and commercial settings. Diamond bunded oil tanks are a no-nonsense option, designed for customers who do not need additional tank monitoring technology, and have been independently tested and approved to EN13341 for safe, reliable oil storage.

Moulded in the UK from durable medium density polyethylene (MDPE), the tank is lightweight, non-corrosive and simple to install. Being integrally bunded, the outer tank provides secondary containment to protect the environment should the inner tank ever be damaged.

Product Summary

• Slimline design - 1900mm x 640mm x 1465mm high
• Nominal capacity: 949 litres (brimful 999 litres)
• Moulded from durable medium density polyethylene (MDPE)
• Integrally bunded
• Independently tested and approved to EN13341
• Bottom outlet with 1” BSP(F) thread
• 16” lockable access lid
• 2” BSP(M) fill point
• 4” lockable inspection cap
• 32mm hole with cover, suitable for fitting an electronic gauge
• Inner tank vent
• Moulded-in handles for ease of lifting
• Weight: 120kg

Optional Extras

• Apollo Standard Ultrasonic Gauge – a tank-mounted ultrasonic transmitter and plug-in receiver with an easy-to-read LCD display, fitted into the 32mm gauge port. Includes an on-screen low-level warning with audible alarm, and requires no specialist tools or wiring.
• Bottom Outlet Fitting Kit – fittings for the 1” BSP(F) bottom outlet to connect the tank to your oil supply line.
