850 Litre Steel Bunded Imperium® Generator Feed Tank - Atlantis

850 Litre Steel Bunded Imperium® Generator Feed Tank - Atlantis

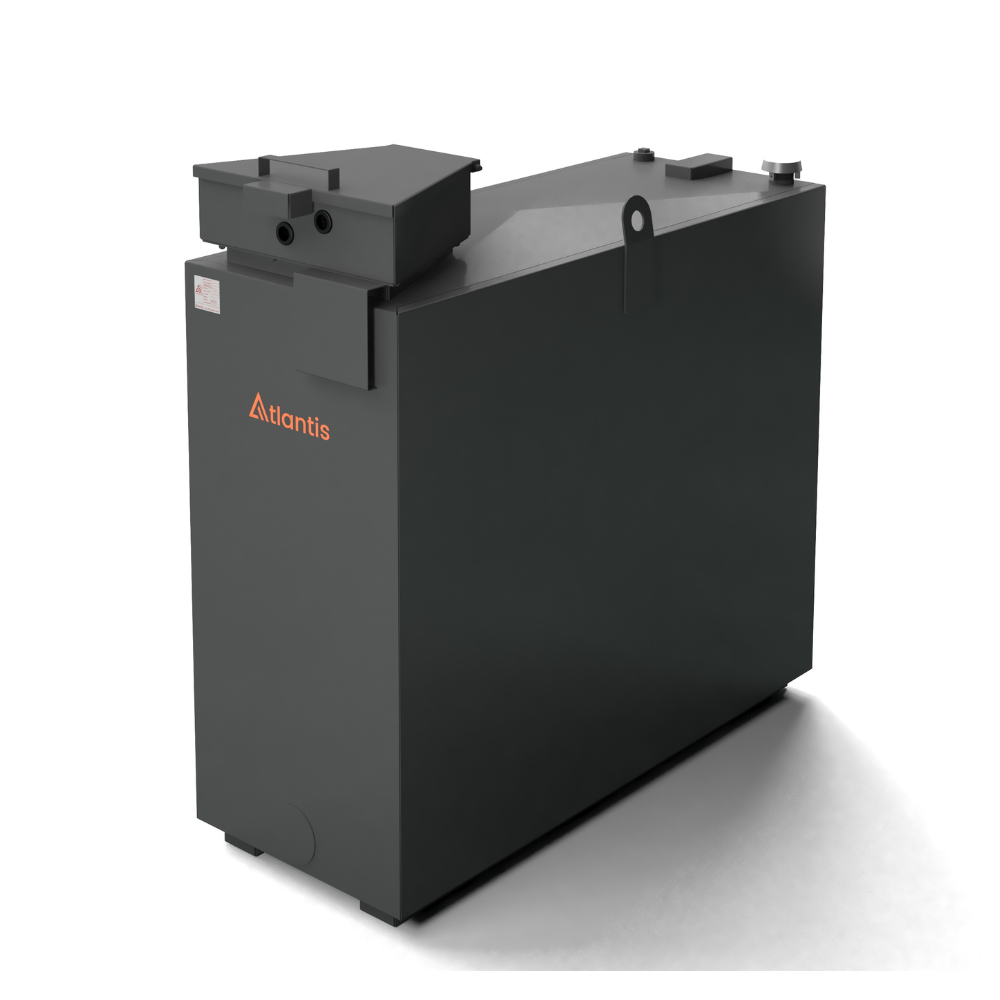

The Atlantis 850 litre Imperium® generator feed tank is a robust steel bunded tank for storing and supplying diesel, HVO and compatible fuels to standby and prime-power generators. Built with Atlantis' own Imperium® technology, it combines precision tank design with efficient British manufacturing for a well-engineered, compliant generator feed solution.

The inner tank holds the fuel while the steel outer bund provides secondary containment, in line with the Control of Pollution (Oil Storage) (England) Regulations 2001 and devolved equivalents. Every tank comes with Atlantis' unique removable drop tube, so the foot valve and strainer can be replaced easily if blocked by sludge, reducing maintenance costs and downtime.

Product Summary

• Model: TAN.GFI-945
• Dimensions: 1,525mm L x 610mm W x 1,250mm H
• Brimful capacity: 945 litres (898 litres nominal, 869 litres usable with OPV)
• Weight: 221kg empty
• Suitable for DERV (white diesel), gas oil (red diesel) and HVO
• Structural steel grade S275 JR, built to BS 799-5
• 2 coats of anti-rust coating, grey RAL 7015
• Standard fit lockable top box
• Removable Imperium® fittings plate and gauge/alarm mounting plate
• Full-length bearers and lifting eyes
• 10-year tank warranty (subject to T&Cs)

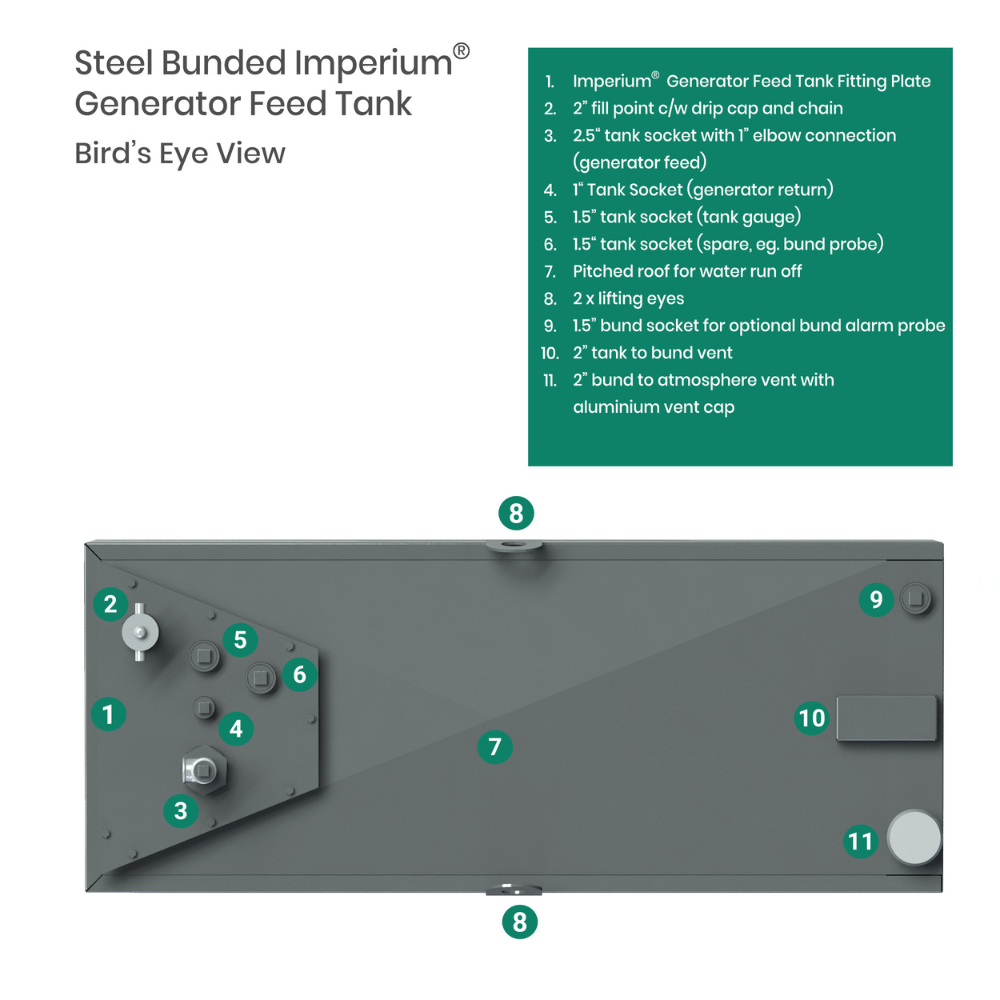

Connections

• 2" fill point with drip cap and chain
• 2.5" tank socket with 1" elbow (generator feed)
• 1" removable drop tube with foot valve and strainer
• 1" tank socket (generator return)
• 2 x 1.5" tank sockets (e.g. for tank/bund probes)
• 1.5" bund socket
• 2" tank to bund vent and 2" bund to atmosphere vent

Optional Extras

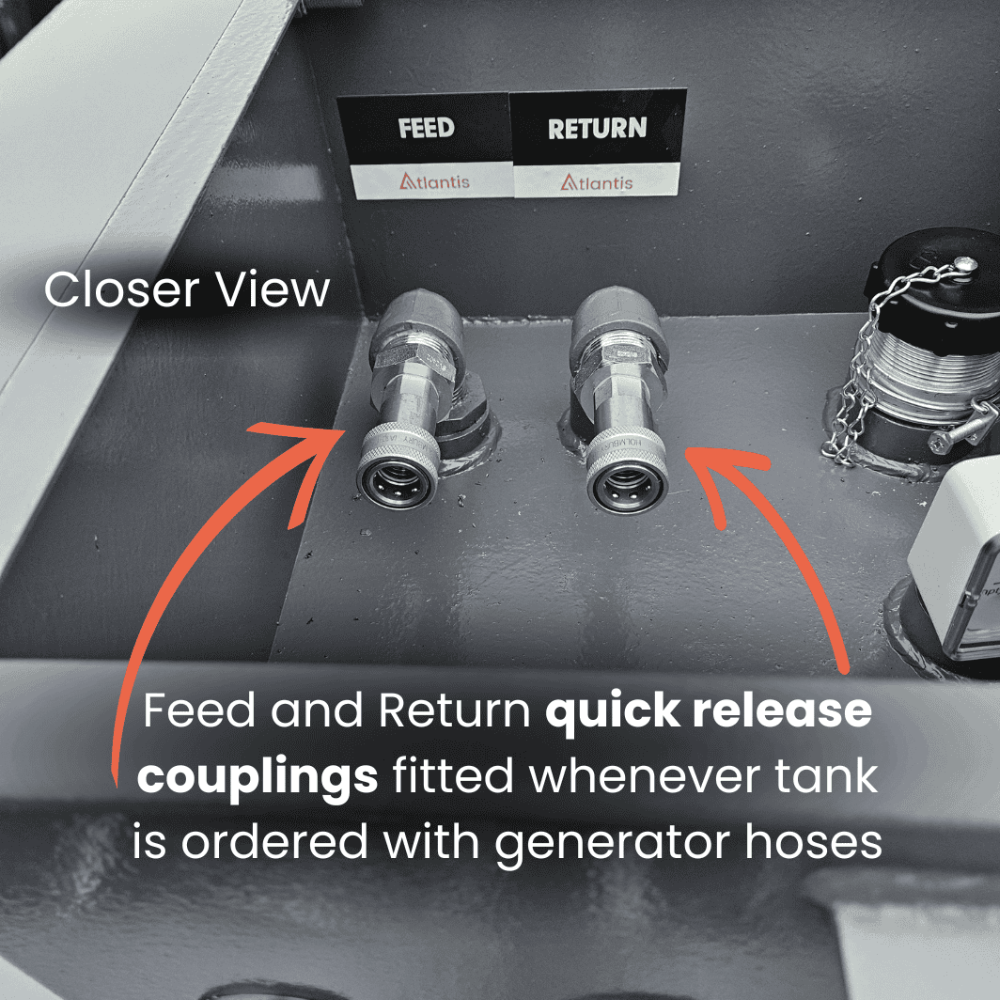

• Generator hose with quick release couplings, 3/8" or 1/2" x 6m (fitted before delivery)
• Contents gauges: clock face, spiral float, Unitel (%) or O.L.E. gauge kits with alarms
• Bund alarm and high level probes
• 2" overfill limiter and manway access hatch

Please contact us for pricing on optional extras.

Installation

Install on a strong, level, impermeable base extending beyond the tank footprint. Full weight when filled is approximately 996kg.
