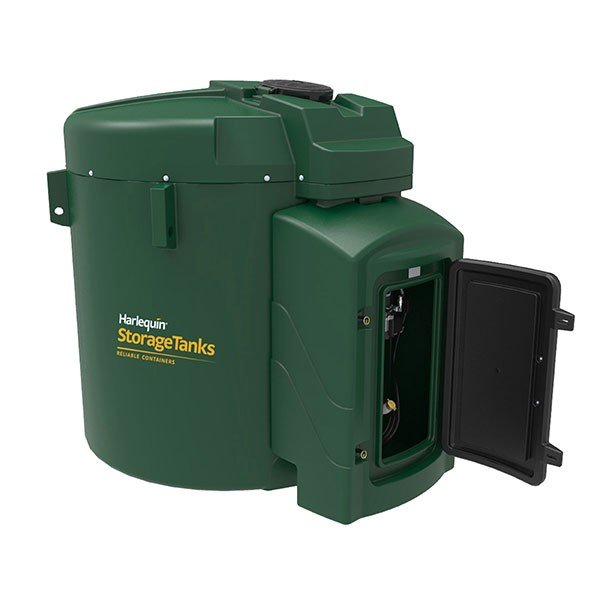

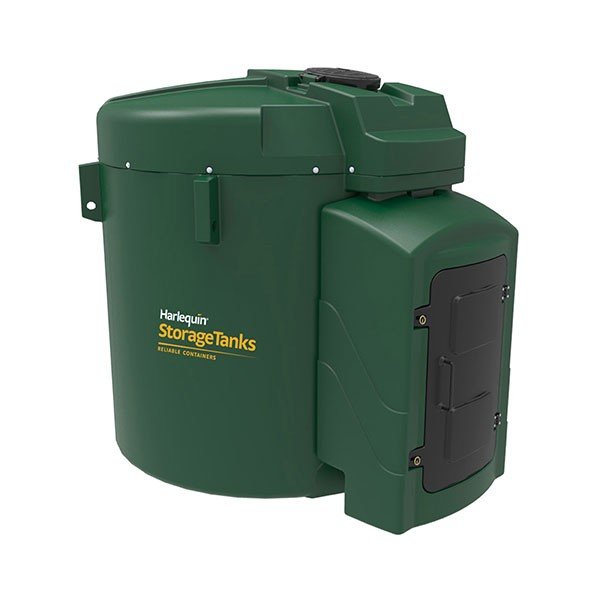

9250 Litre Diesel Fuel Station - Harlequin

The Harlequin 9250FS is the largest fuel station in the Harlequin range, built for the busiest sites such as haulage and logistics depots, bus and coach operators, large farms and construction businesses. With almost 8,900 litres of usable capacity it lets you take full bulk deliveries at the best prices, and it comes with a high level of protection as standard, including overfill prevention and a bund monitor.

It's moulded from durable Medium Density Polyethylene (MDPE) and is integrally bunded: the inner tank sits inside a separate outer containment tank, so any leak is held safely rather than escaping into the environment. A bund monitor alerts you if fuel ever gets into the bund, while a mechanical overfill prevention valve and LRC overfill prevention probe help stop the tank being overfilled during deliveries. Moulded-in lifting eyes make it easier to handle and position.

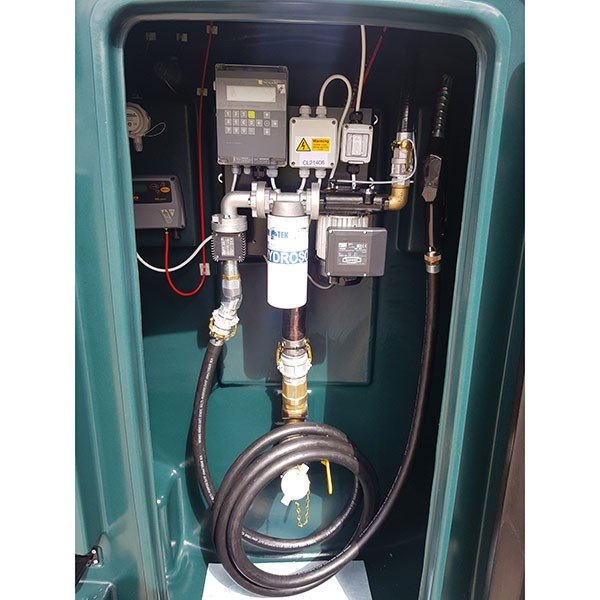

The pump, filter, hose and nozzle are housed in a lockable equipment cabinet with a bulkhead light, and a hydrostatic contents gauge with in-cabinet digital display shows the fuel level. A 10 micron filter removes particles and water before the fuel reaches your vehicles and machinery, and the offset fill point has a non-return valve and lever ball valve for clean, controlled deliveries.

For fleets that need to track who is using the fuel, the tank can be supplied with a Tecalemit HDA Eco fuel management system, which records usage by driver or vehicle.

Key Features

• Fully bunded, tank-within-a-tank construction
• Durable MDPE, won't rust or corrode
• 56 L/min 230V fuel pump as standard (72 L/min available)
• 10 micron particulate and water filter
• 6m delivery hose with automatic shut-off nozzle
• Hydrostatic contents gauge with in-cabinet digital display
• Mechanical overfill prevention valve and LRC overfill prevention probe
• Bund monitor
• Bulkhead light
• Lockable equipment cabinet
• 2" BSP(M) offset fill point with non-return valve and lever ball valve
• 4" lockable inspection cap
• Moulded-in lifting eyes
• Nominal capacity 8,913 litres (brimful 9,382 litres)

Optional Extras

• Tecalemit HDA Eco fuel management system

Installation Requirements

The tank must be positioned on a flat, level base strong enough to support the weight of the tank when completely full, with continuous support across the entire underside. A 230V power supply is needed for the pump. Diesel storage must comply with the relevant oil storage regulations for your site.
