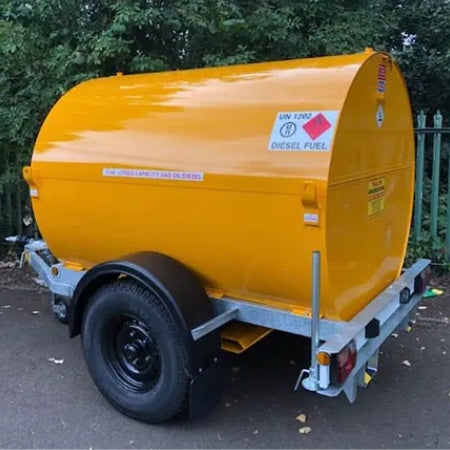

2140 Litre Bunded Diesel Highway Bowser
2140 Litre Bunded Diesel Highway Bowser
2140 Litre Bunded Diesel Highway Bowser
This Bunded Diesel Highway Bowser features a polyethylene inner tank to ensure clean, contamination-free fuel storage, securely housed within a steel outer bund for maximum environmental protection. The 2140 litre bunded diesel site tow bowser is fully UN certified for 10 years, making it suitable for long-term diesel storage. Supplied complete with a fully welded single-axle towable trailer, the A-frame chassis is manufactured from steel and hot-dip galvanised as standard for superior corrosion resistance and durability.
Supplied as Standard
- 15ft delivery hose
- lockable rear door
- Manual shut off nozzle
- Contents gauge
- Four lifting points
- 2" fill point
- 2" vent
- Certified UN1202 (for road haulage)
- Painted Yellow as standard (other colours available for extra cost)
Technical Specification
Chassis: Fully welded 100 × 50 RSC steel trailer chassis with front standing plate and A-frame drawbar, hot-dip galvanised as standard (painted option available). Fully EU road certified.
Axle: Knott-Avonride 3000kg rubber torsion beam axle with 300 × 60 auto-reverse brakes.
Wheels & Tyres: 235/85 R16 12-ply radial tyres on 5-stud 6½” PCD rims.
Coupling: 3000kg Knott-Avonride overrun coupling with auto-reverse braking, spring-assisted handbrake and breakaway cable. Supplied with 40mm ring eye or 50mm ball.
Ancillary Equipment: Moulded mudguards and flaps, rear support stand, telescopic jockey wheel, side reflectors, front markers, and full road lighting with 13-pin plug and 7-pin adapter.

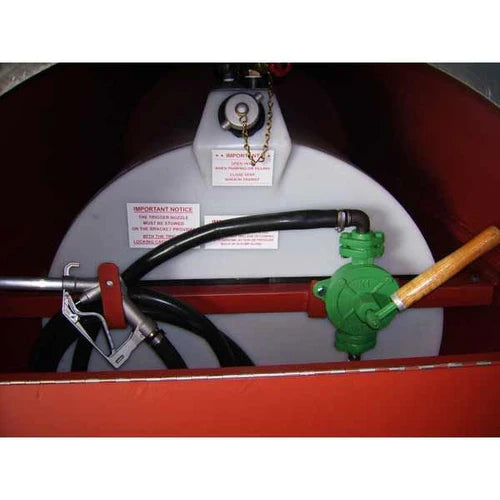

Pump: K2 semi-rotary hand pump with inline Y-strainer, 15ft × 1” hose and trigger nozzle, securely stowed within the lockable bund area.
Outer Bund Tank: Cylindrical 3mm mild steel bund with removable top section and lockable rear access door. Provides 110% containment of inner tank capacity.
Inner Fuel Tank: Translucent heavy-duty polyethylene tank with 2” filler cap and chain, 2” vent valve, top-mounted ½” BSP suction and return connections, base ball valve to pump, and pressure relief valve.
Dimensions
- HEIGHT: 1981mm
- LENGTH: 3684mm
- WIDTH: 1981mm
- TOWING HEIGHT: (Level) 590mm
- UNLADEN WEIGHT: 850kg approx
- LADEN WEIGHT: 2650kg approx – 2800kg max
Delivery Information
Customer to offload - forklift with extended forks will be required.
Couldn't load pickup availability
Product Specification
Product Specification
- Length: 3600mm
- Width: 1981mm
- Height: 2015mm
- Weight: 968kg
- Capacity: 2140 Litre
- Fuel Suitability: Diesel
