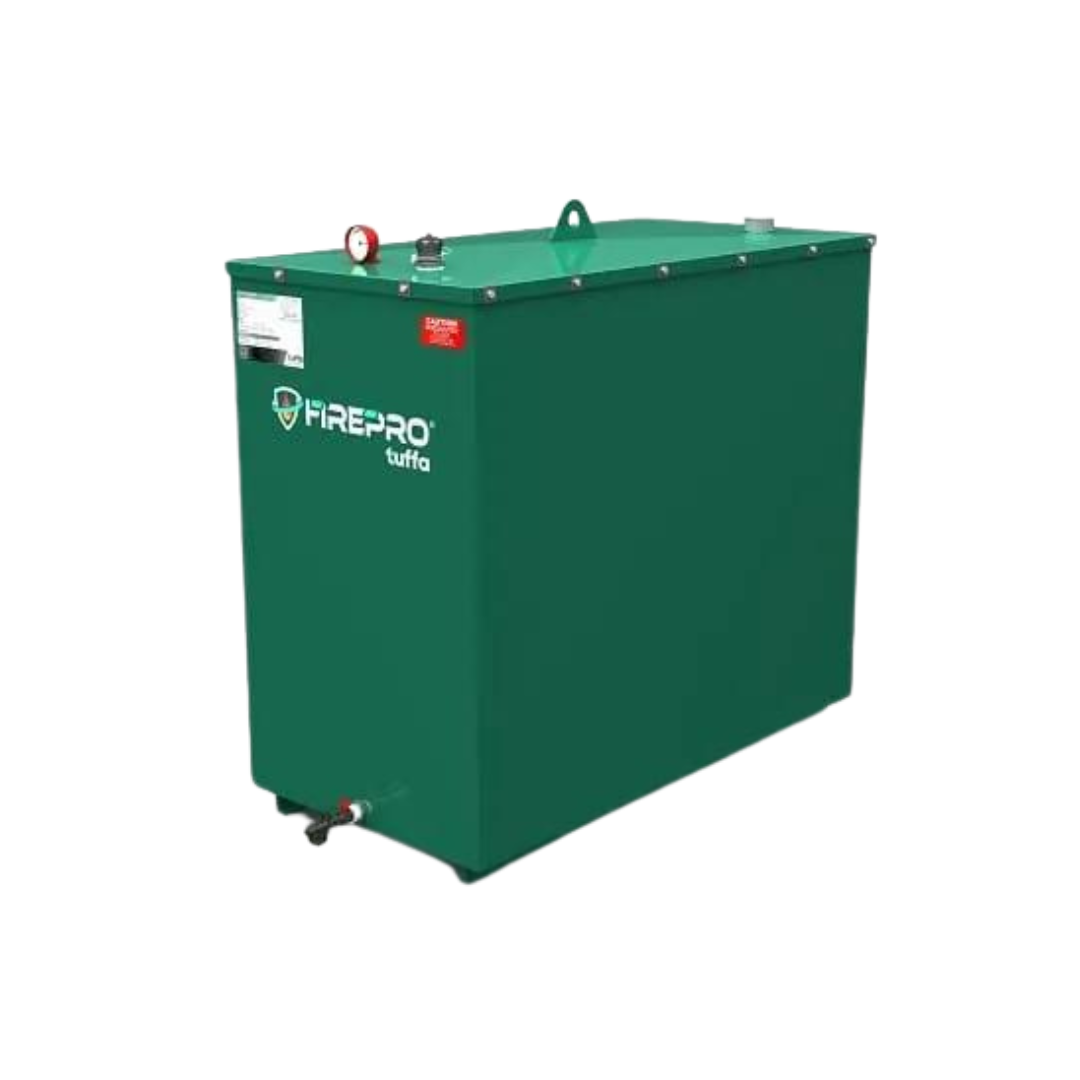

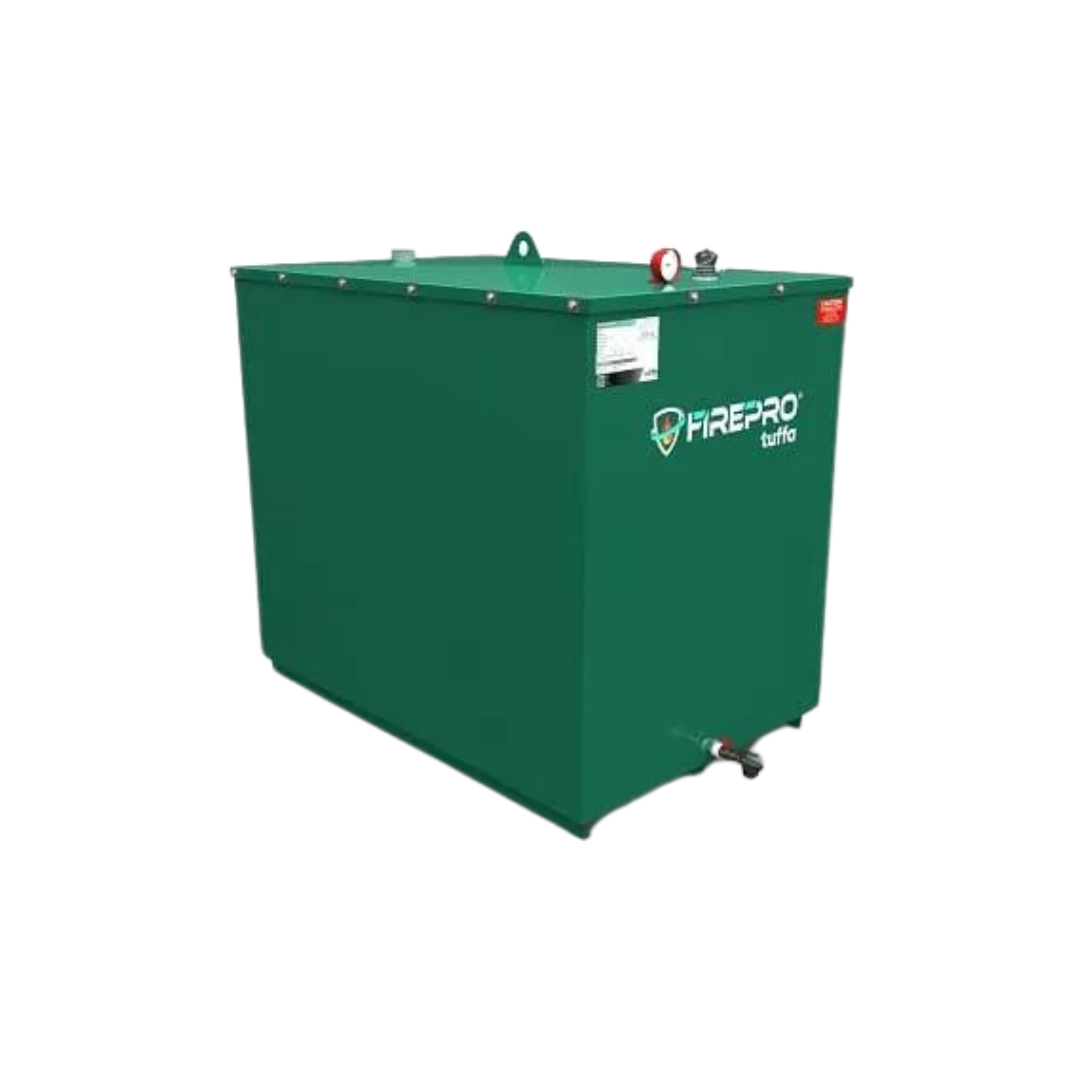

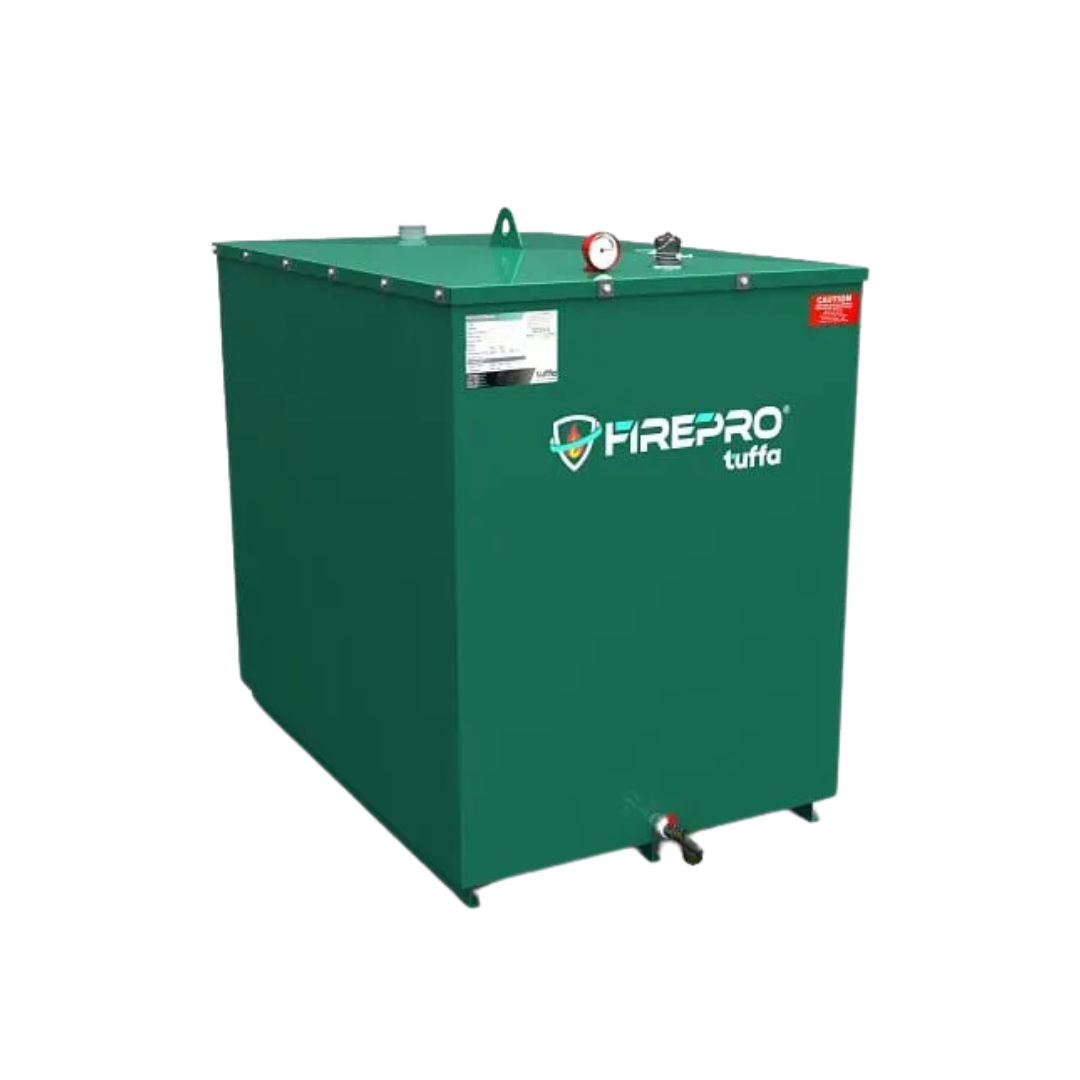

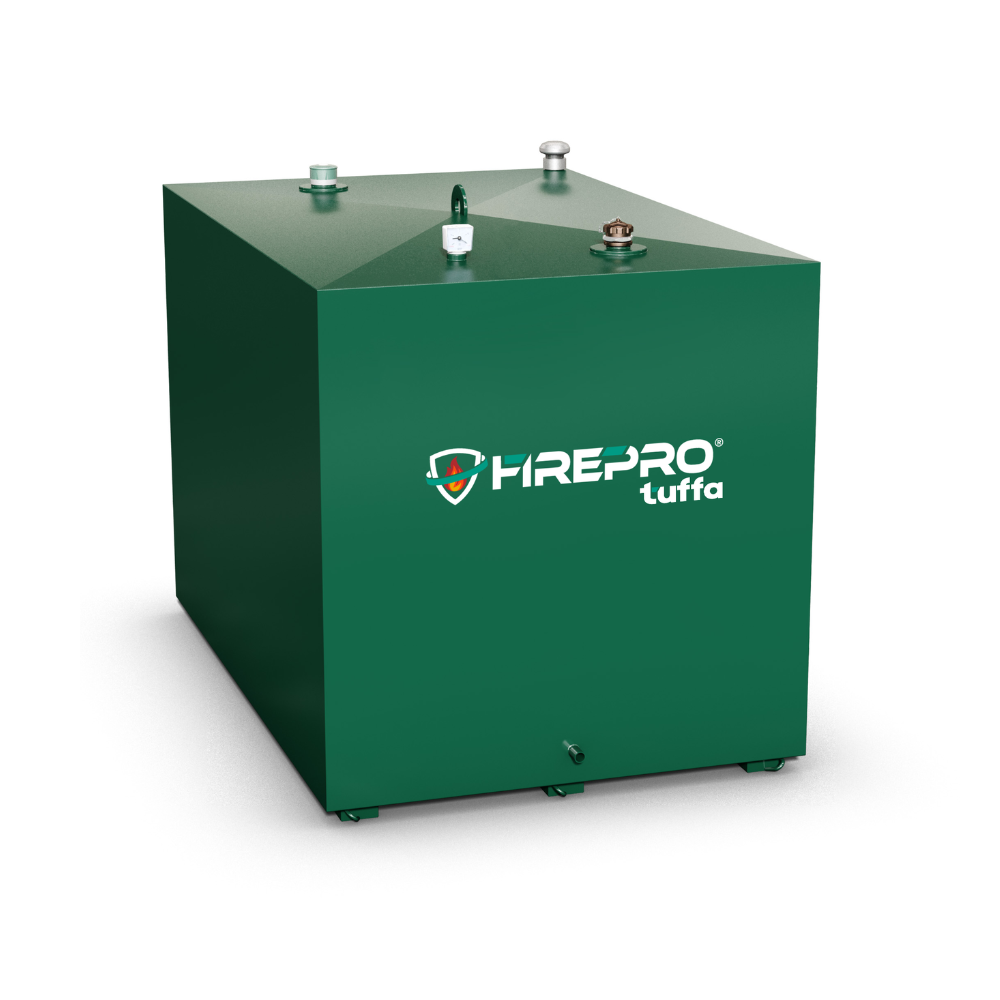

2300 Litre Fire Protected Steel Bunded Oil Tank - Tuffa Tanks

2300 Litre Fire Protected Steel Bunded Oil Tank - Tuffa Tanks

This Fire Protected Bunded Tank is fabricated with an outer tank (bund) and primary inner tank. All of our fire protected tanks have an integral bund fitted as standard to protect against spillage and overfilling. The heating oil tanks can hold a capacity of 2300 litres (505 gallons). The integrally fire rated system meets the functional requirements of Building Regulations and is suitable for domestic and commercial use. Fire-protected oil tanks must be installed to building standards. We have approved installers throughout the UK ready to fit your tank.

Product Summary

• Quality Build - Precision craftsmanship, high-quality build and paint finish for durability and aesthetics.
• Compact design optimises space without sacrificing capacity.
• Removable lid ensures hassle-free upkeep.
• Made from durable mild steel for longevity.
• Minimum 110% bund capacity for enhanced safety.
• Pre-fitted with premium ancillary equipment.
• Design life exceeds 20 years.
• Guaranteed 10-year upon registration.
• Weatherproof
• Compatible with HVO fuel and HVO kerosene blends.
• Fire protection
• 2″ BSP fill point complete with cap and chain
• Overfill prevention valve
• Vent

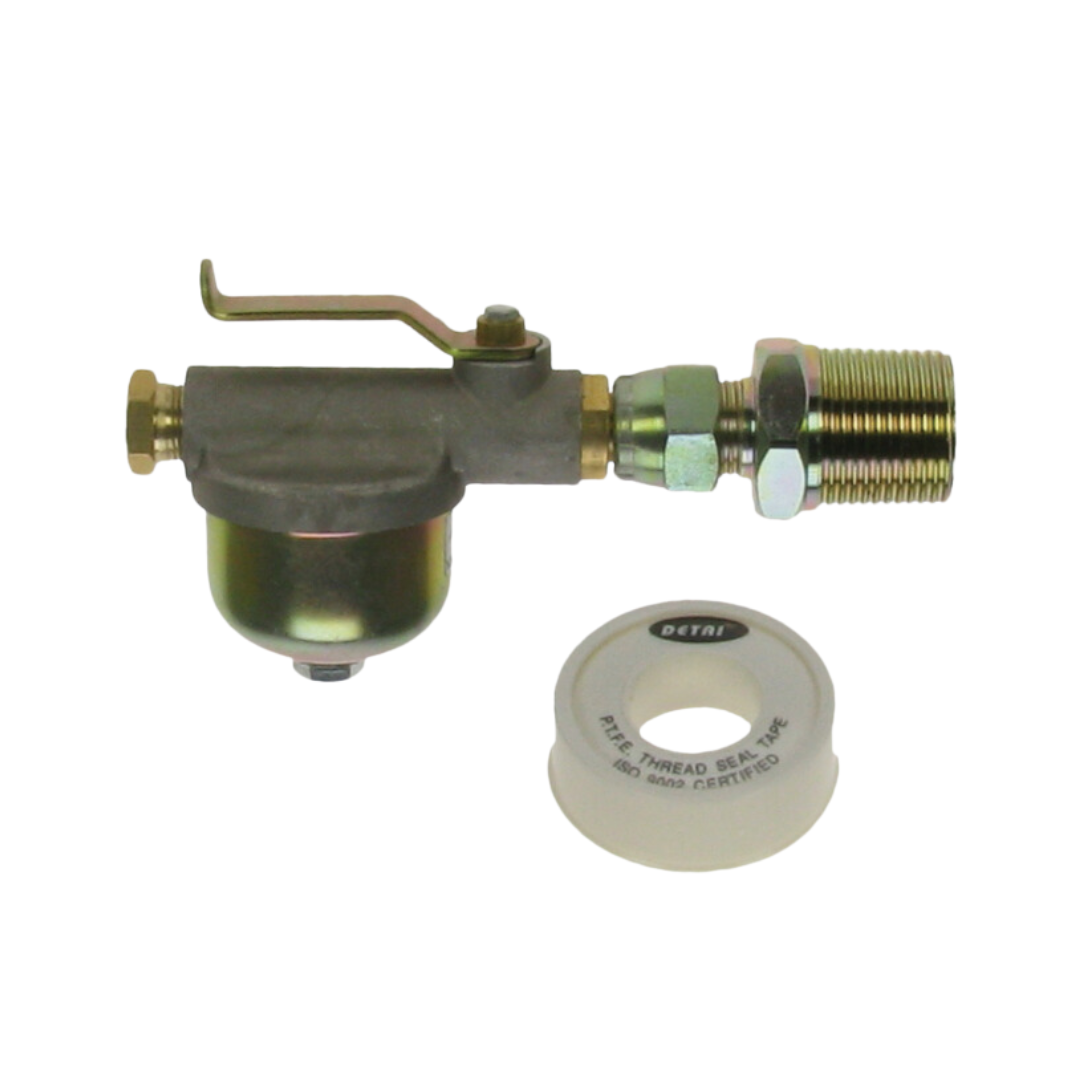

• 1” BSP bottom outlet

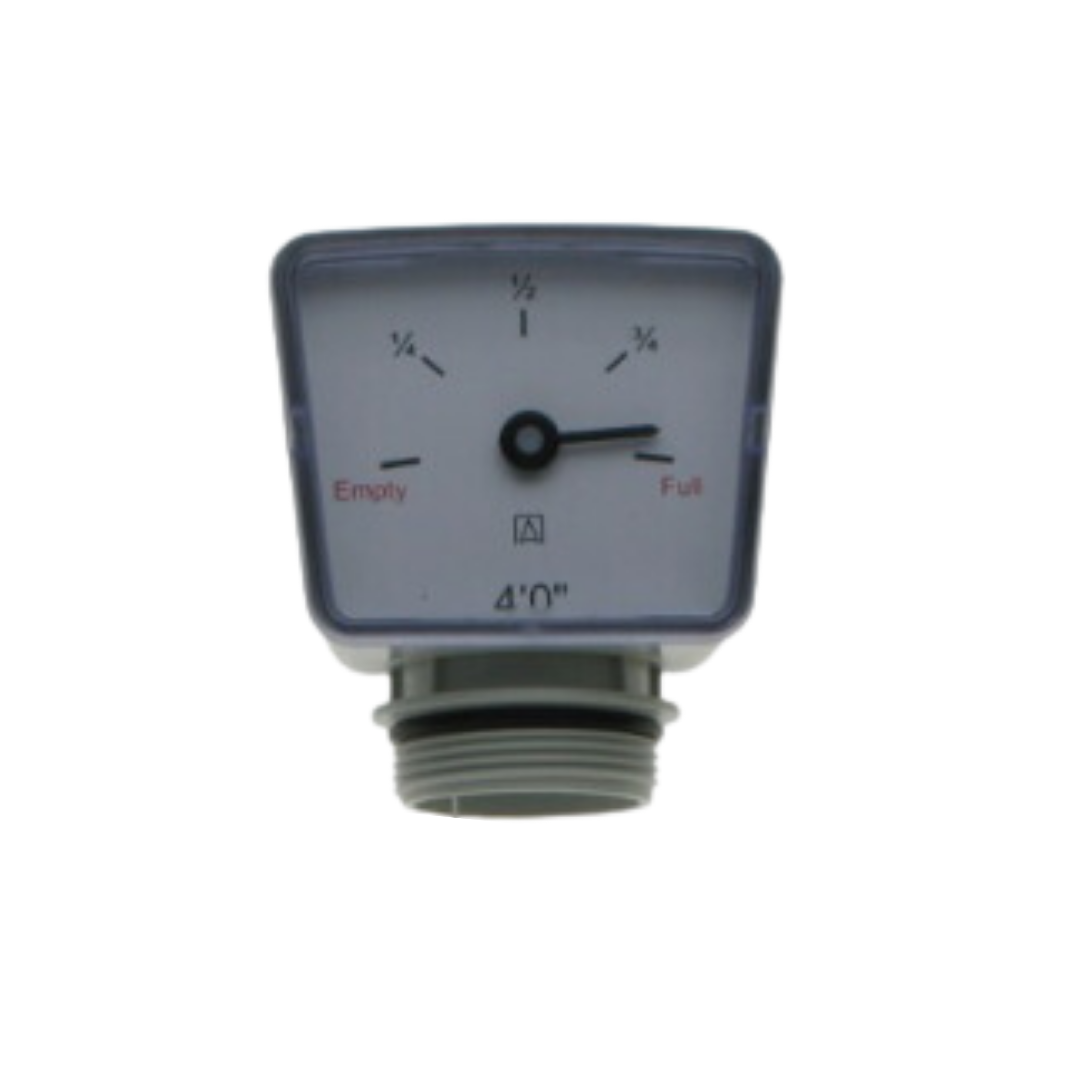

• Manual float level gauge

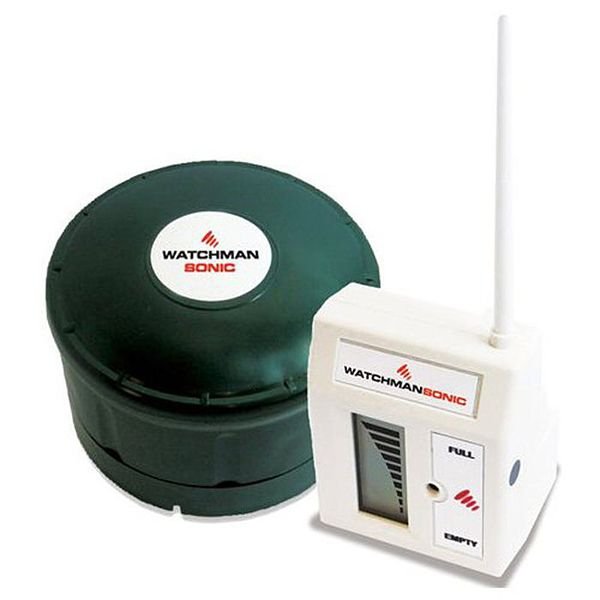

• Electronic Watchman Sonic gauge
• Central lifting eye
• Channel runners
• Tank fittings kit (1” x 1/2″ adaptor, ball valve and filter)
• Painted in RAL 6005 Green
• Height includes runners and fittings on top of the tan


30 Minute Fire Protection

Enables the installation of an oil tank a minimum of 300mm from other buildings and structures. Where access is required (e.g. at the front of the tank to fill it) then a minimum distance of 600mm is required.

60 Minute Fire Protection

Enables the installation of an oil tank within a garage or other internal space where it is impractical to install the tank externally to the building. The tank must be installed in an uninhabitable area (e.g. a garage or outbuilding), at the lowest possible level in the building or structure. Additionally, the tank must be installed a minimum of 300mm from other internal walls and structures or 600mm where access is required

Who Can Install & certify The Fire Rated Oil tank?

Tuffa has partnered with national building control company Stroma and our FirePro® range can be signed off remotely using a simple process. Find out more on our Guide to FirePro sign-off here.
