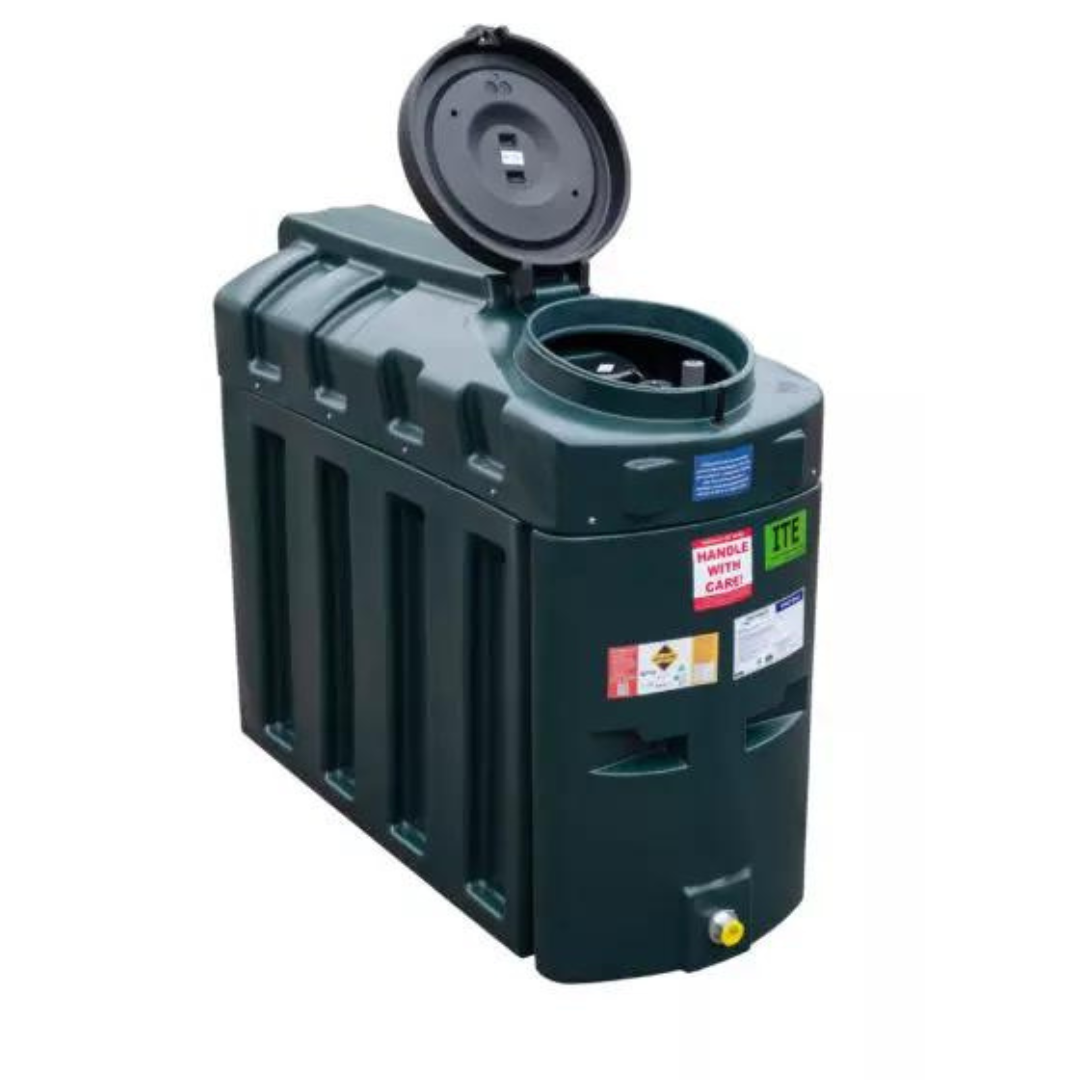

650 Litre Slimline Bunded Oil Tank - - Harlequin

The Harlequin 650 Litre Slimline Bunded Heating Oil Tank provides a compact and secure solution for storing heating oil where available installation space is restricted. With a width of just 670mm, its narrow profile makes it particularly suitable for domestic properties, commercial premises and installations alongside buildings where a conventional tank may be too wide.

Constructed from tough, corrosion-resistant Medium Density Polyethylene (MDPE), the tank features a fully integrally bunded design, consisting of an inner oil storage tank protected by a separate outer containment tank. This secondary containment provides additional protection against leaks and helps reduce the risk of oil escaping into the surrounding environment.

The tank is supplied with a standard bottom outlet fitting kit, allowing it to be connected to the fuel supply pipework as part of a suitable installation.

For additional peace of mind, the tank is covered by a 10-year manufacturer's guarantee, subject to registration and Harlequin's terms and conditions.

Key Features

•  Fully bunded, tank-within-a-tank construction
•  Slimline 670mm wide design
•  Manufactured from durable MDPE
•  Corrosion resistant and low maintenance
•  2" BSP filling connection suitable for fuel deliveries
•  Inner tank vent
•  16" lockable access lid
•  4" lockable inspection cap
•  1" BSP female bottom outlet
•  Standard bottom outlet fitting kit included
•  Integrated lifting handles for easier positioning
•  10-year manufacturer's guarantee (registration required

Installation Requirements

Base Length: 2,315mm
Base Width: 1,270mm

The tank must be positioned on a flat, level and non-combustible base suitable for supporting the weight of the tank when completely filled.

The base must provide continuous support across the entire underside of the tank and extend beyond the tank footprint as required.
