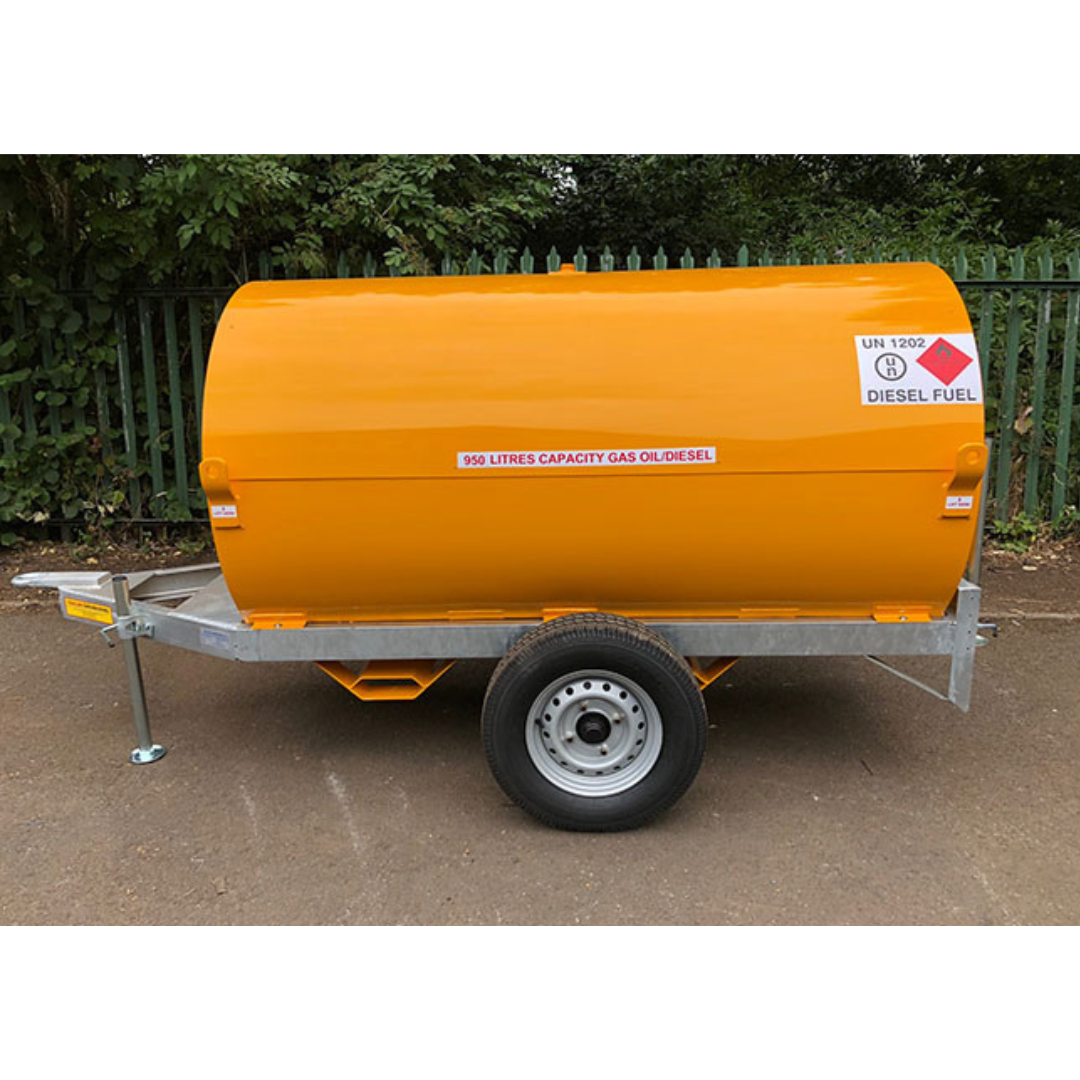

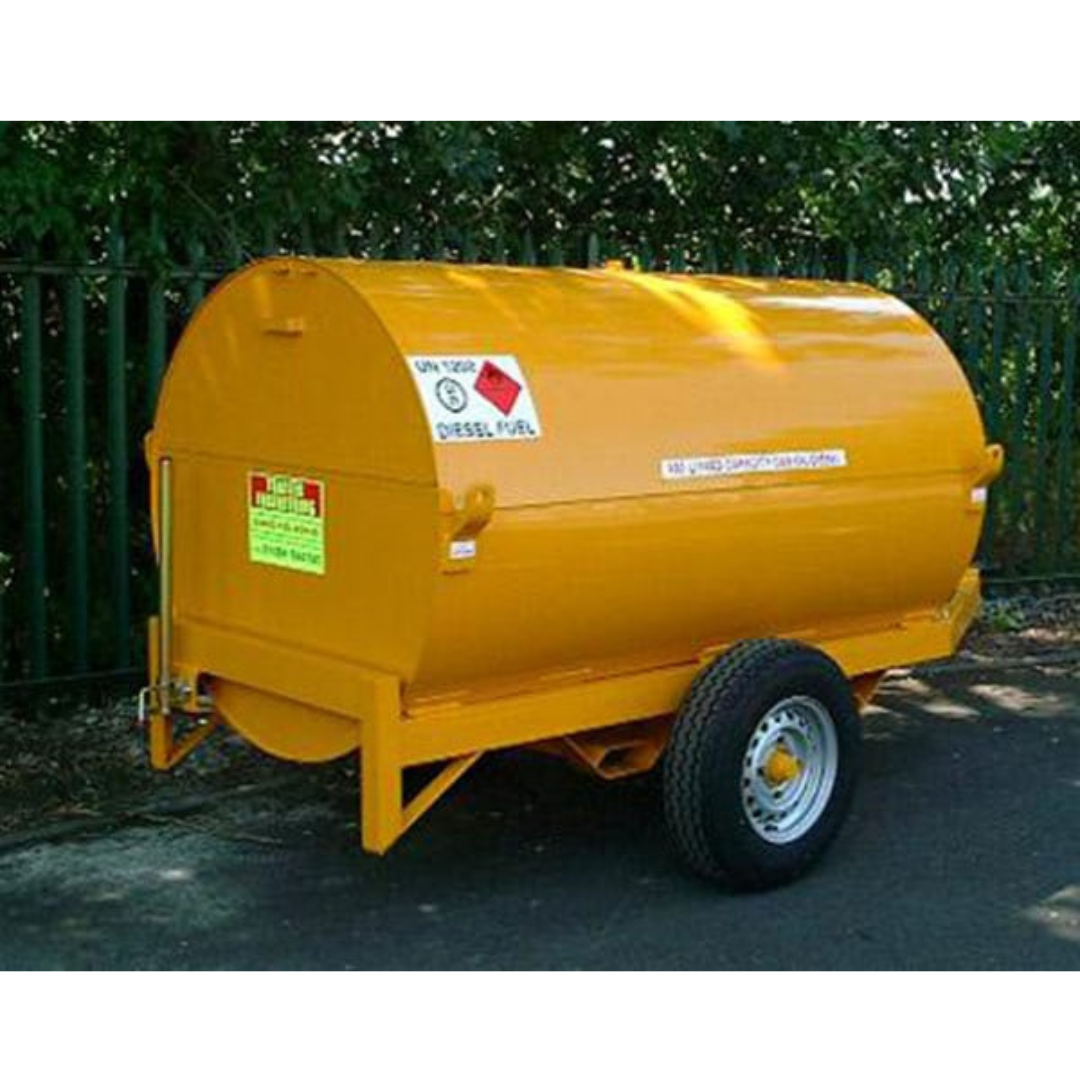

950 Litre Bunded Diesel Site Tow Bowser
950 Litre Bunded Diesel Site Tow Bowser
950 Litre Bunded Diesel Site Tow Bowser
The 950 Litre Bunded Diesel Site Tow Bowser provides a safe, compliant, and mobile fuel storage solution for construction sites, industrial locations, and remote work areas. Built with a polyethylene inner tank and a steel outer bund, this towable diesel bowser ensures secure fuel containment and meets UK safety regulations. Fully UN certified for 10 years, it’s designed for reliable diesel storage and easy transport.
Product Summary
- Safe & Compliant: UN1202 certified for road haulage and 10-year fuel storage
- Durable Construction: Polyethylene inner tank inside galvanised steel outer bund
- Towable Trailer: Single axle, fully welded A-frame trailer, hot dip galvanised for long lasting durability
- Secure Access: Lockable rear door for safe refueling and protection against unauthorized access
- Flexible Handling: Four lifting points and fork truck sockets for easy movement when off-chassis
- High Capacity: Inner tank holds 980 litres while the bund provides 110% containment to hinge line
- Complete Fueling Kit: Delivered with 15ft delivery hose, manual shut-off nozzle, and contents gauge
Technical Specification
- Chassis: 100 x 50 RSC fully welded with front standing plate and A-frame drawbar, hot-dip galvanised.
- Axle: Single solid beam axle with 4 stud unbraked hubs.
- Wheels & Tyres: 2 x 175 x 13 radial tyres fitted to 4 stud 5½” PCD rims.
- Coupling: 2” forged solid ring eye.
- Ancillary Equipment: Rear support stand and front sliding prop stand.
- Outer Bund Tank: Cylindrical, removable top section, rear access door with stainless steel hinge and lock

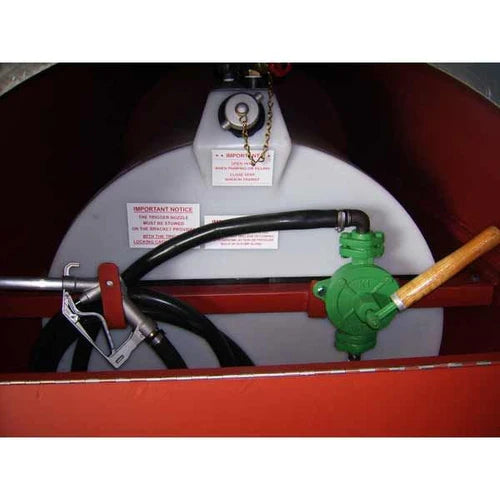

- Inner Tank: Heavy-duty translucent polyethylene; 2” filler with cap and chain, 1” manual vent valve, ½” BSP suction/return connections, base ball valve to pump, top pressure relief valve.
Dimensions
- HEIGHT: 1498mm
- LENGTH: 3175mm
- WIDTH: 1448mm
- UNLADEN WEIGHT: 535kg
- LADEN WEIGHT: 1280kg approx. – 1500kg max
Delivery Information
Customer to offload - forklift with extended forks will be required.
Couldn't load pickup availability
Product Specification
Product Specification
- Length: 3175mm
- Width: 1448mm
- Height: 1528mm
- Weight: 535kg
- Capacity: 950 Litre
- Fuel Suitability: Diesel
