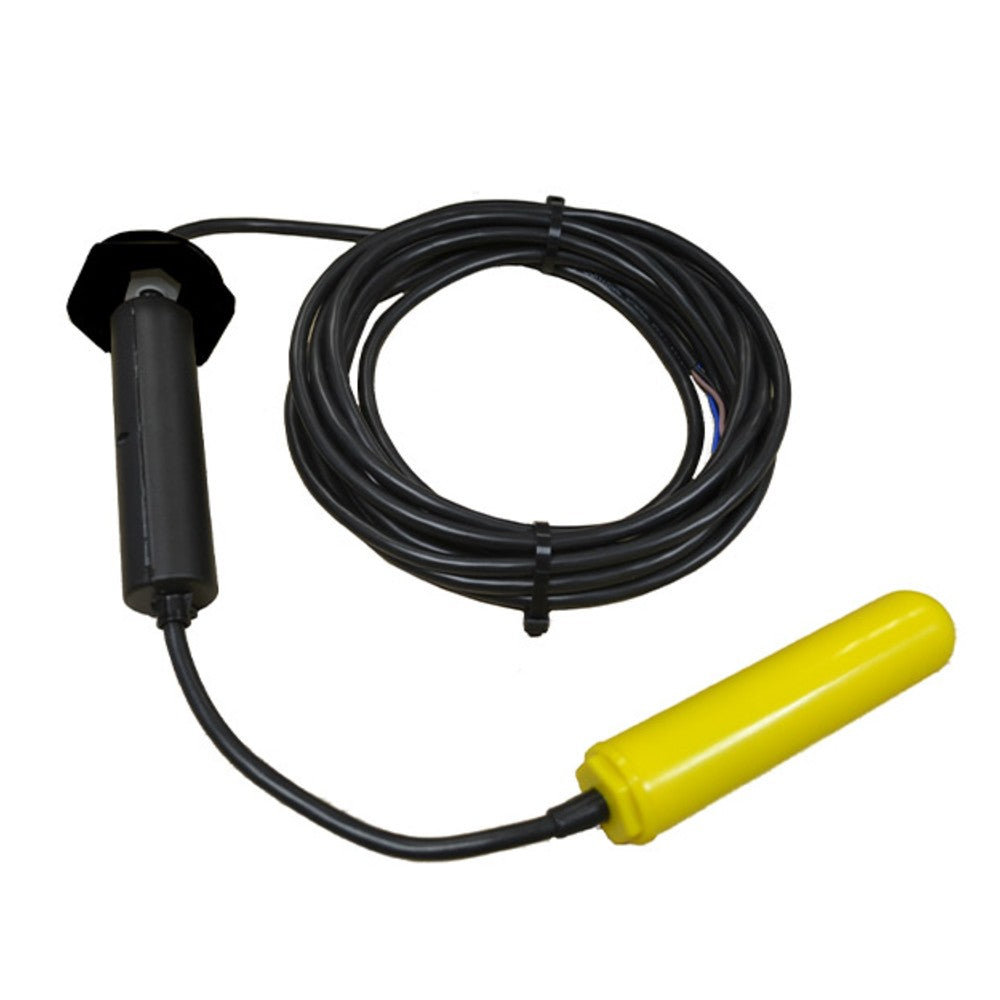

High Viscosity Tank Level Alarm Probe - Waste Oil

High Viscosity Tank Level Alarm Probe - Waste Oil

A tilt-switch probe for CTS tank alarms on tanks holding thick oils or liquids with debris - most often waste oil tanks in garages and workshops. Because it is fully encapsulated, it keeps switching reliably even when particles and sludge would jam a normal float. The supplied weight can be clamped at any point on the cable to set the trigger height.

Key Features

• High or low level alert for viscous oils
• Encapsulated - reliable with debris and sludge
• Adjustable trigger height with cable weight
• 5m PVC cable
• 1 1/2" BSP female plastic cap and cable gland
• 3 wire NO and NC contacts
• Polypropylene construction
• Temperature range 0°C to +60°C

Specifications

• Fitting: 1 1/2" BSP F plastic cap
• Cable: 5m PVC
• Contacts: NO and NC, 3A max
• Temperature Range: 0°C to +60°C
• Suitable For: Waste oil, viscous fluids

Please Note

For use with CTS tank alarms.
