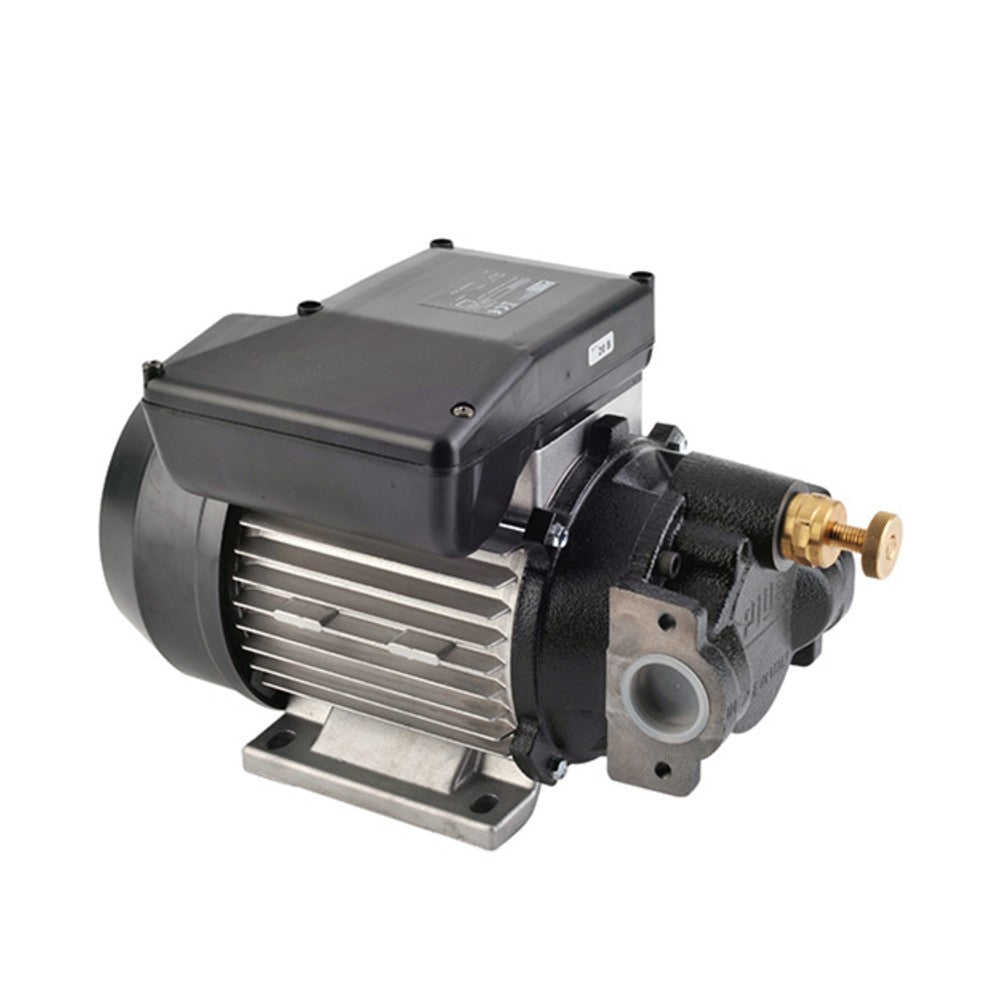

Piusi Viscomat 70 Electric Oil Transfer Pump - 25 L/min

Piusi Viscomat 70 Electric Oil Transfer Pump - 25 L/min

The Piusi Viscomat 70 is an electric vane pump built for transferring lubricating oil between tanks and drums, and for feeding hose reels on fixed oil distribution systems in workshops, garages and plant depots. It runs quietly (under 70dB) with a smooth, pulse-free flow, and its adjustable bypass allows it to run against a closed nozzle. Made in Italy by Piusi, it handles oils up to 500 cSt and can also transfer diesel within a system.

Key Features

• Up to 25 litres per minute
• Self-priming vane pump with high suction capacity
• Quiet, smooth flow without pulsation
• Sintered steel rotor with acetal resin vanes
• Adjustable bypass valve and Viton lip seal
• Handles oil up to 500 cSt viscosity
• Maximum fluid temperature 70°C
• Rated for continuous running
• 1" BSP female inlet and outlet
• IP55 protection

Specifications

• Flow Rate: 25 L/min
• Max Pressure: Up to 9 bar
• Viscosity: Up to 500 cSt
• Inlet / Outlet: 1" BSP Female
• Duty Cycle: Continuous
• Protection: IP55
• Suitable For: Lubricating oils, hydraulic oil, diesel transfer

Please Note

Not recommended for refuelling vehicles with diesel - choose a Panther or E120 diesel pump for that. Check your oil viscosity is within 500 cSt before ordering.
