1:1 Air Operated Oil Pump and Air Regulator with 3m Hose & Digital Nozzle

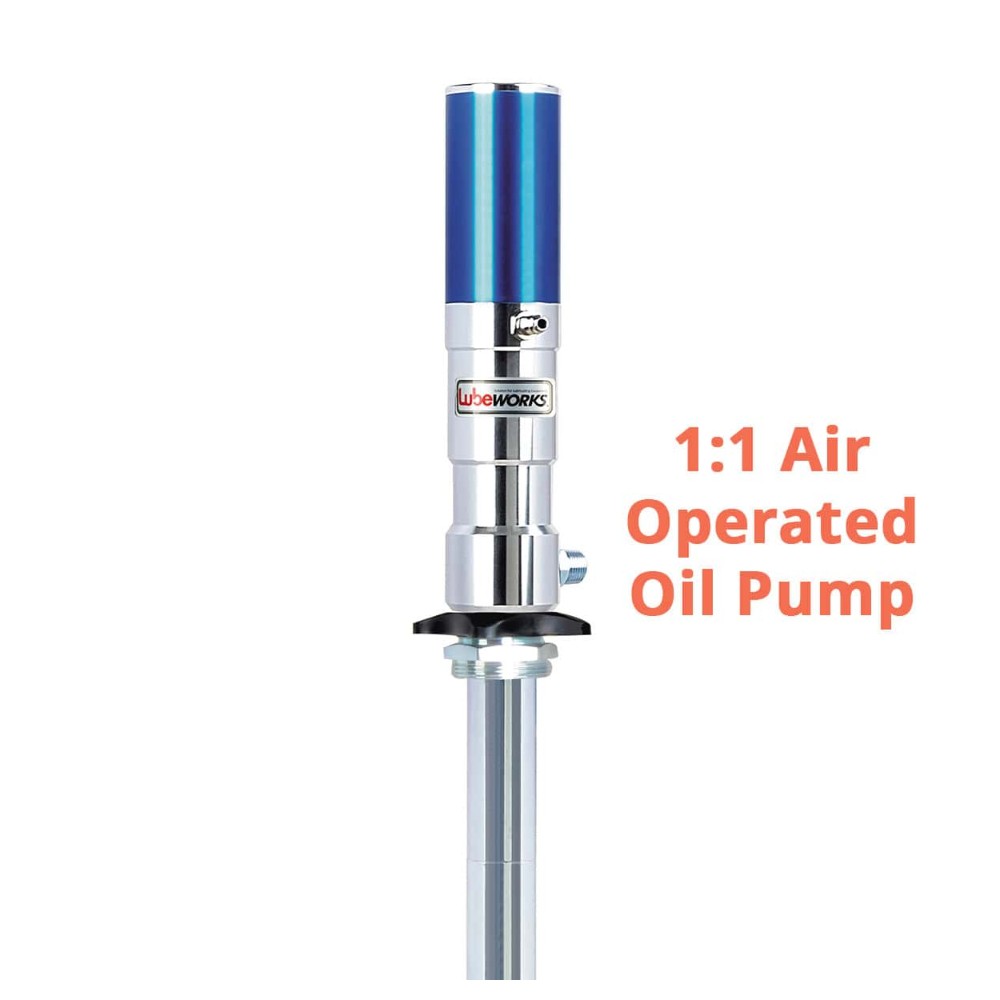

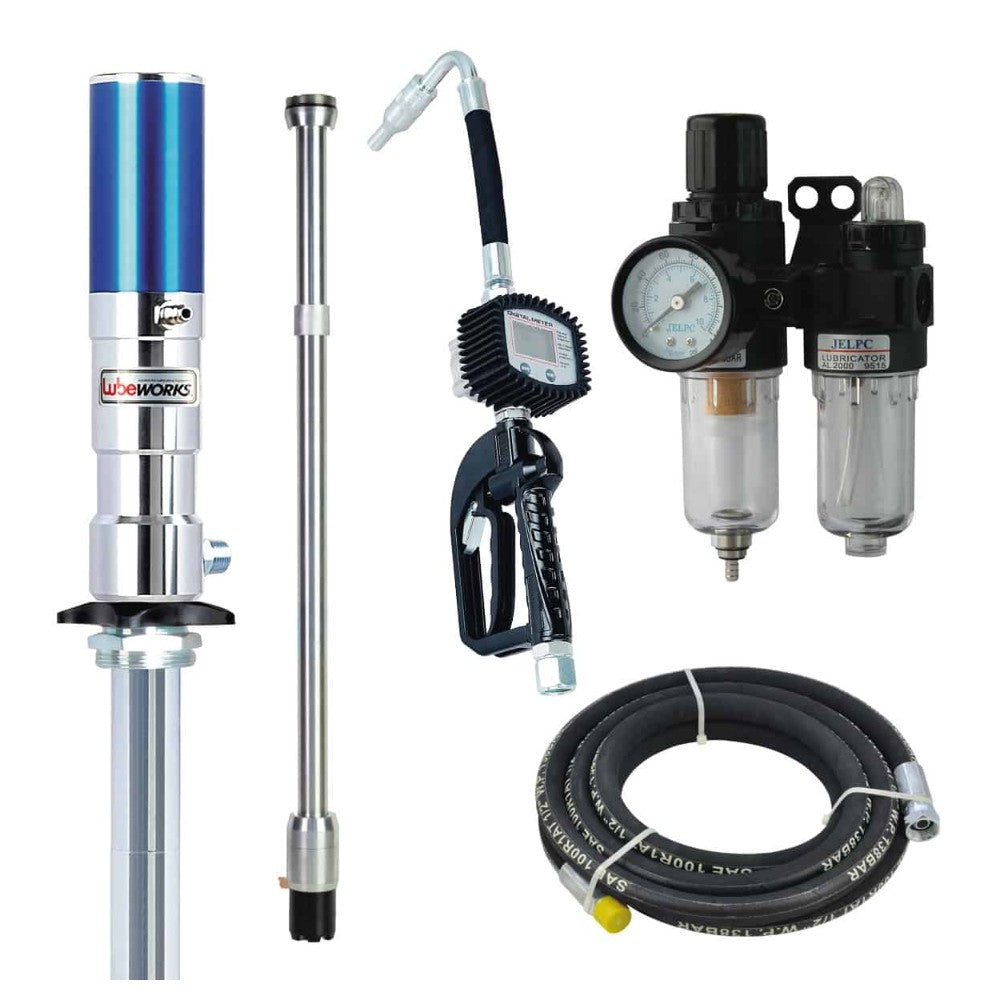

A compressed-air driven 1:1 lube oil pump made to fit the Atlantis Imperium® lube oil tank range. The low-noise air motor suits garages, fleet workshops, agricultural and plant workshops, and fast lube centres. This kit also comes with a 3 m delivery hose and a digital metering nozzle, so you can dispense measured quantities straight away.

1:1 Ratio Explained

Air pressure in equals oil pressure out, which suits thinner oils over short runs where a gentle transfer is all you need.

Pump Data

• Ratio: 1:1
• Working pressure: 5 – 10 bar (70 – 150 psi)
• Max. fluid pressure: 8 bar (115 psi)
• Air consumption: 100 L/min @ 8 bar
• Output capacity: 18 L/min
• Suction tube diameter: 42 mm
• Air inlet connection: 1/4″ quick plug
• Oil delivery connection: 1/2″ male
• Max. viscosity: SAE 120
• Tested with SAE 30 oil at 20°C through a 2 m hose, free outlet

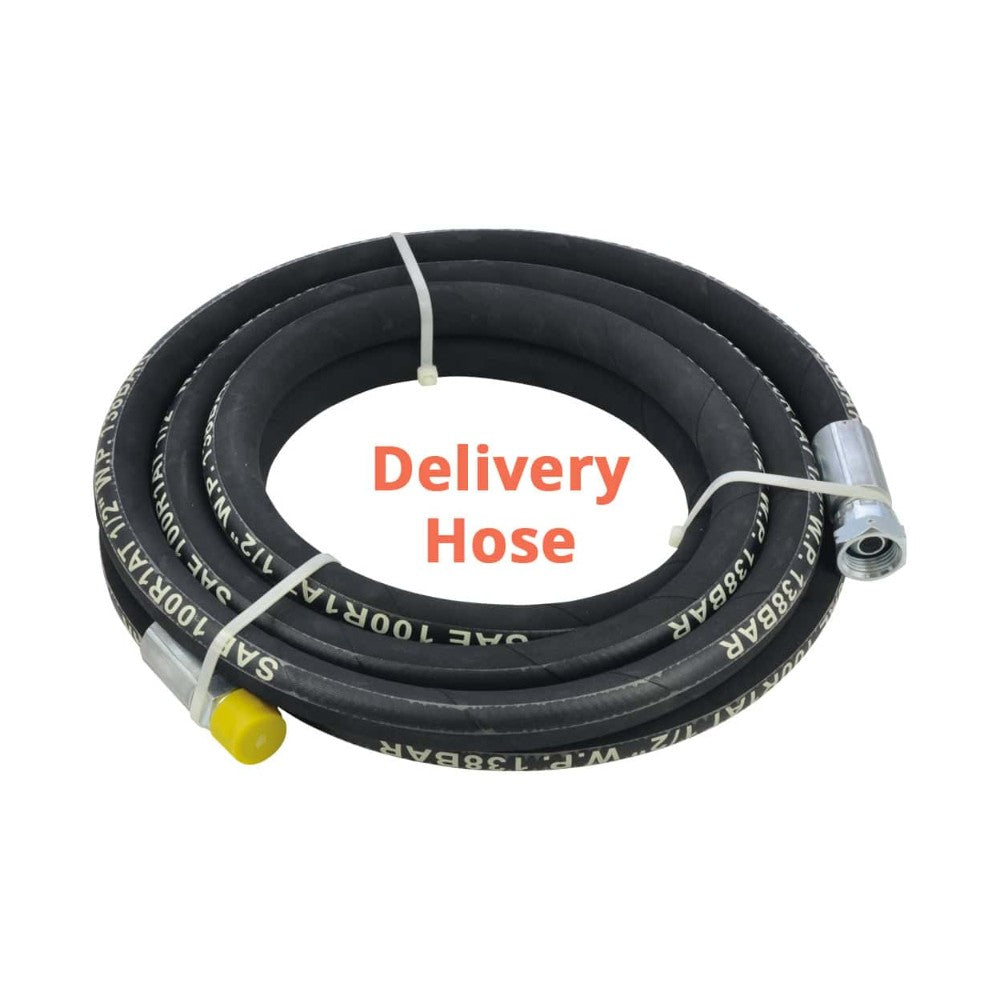

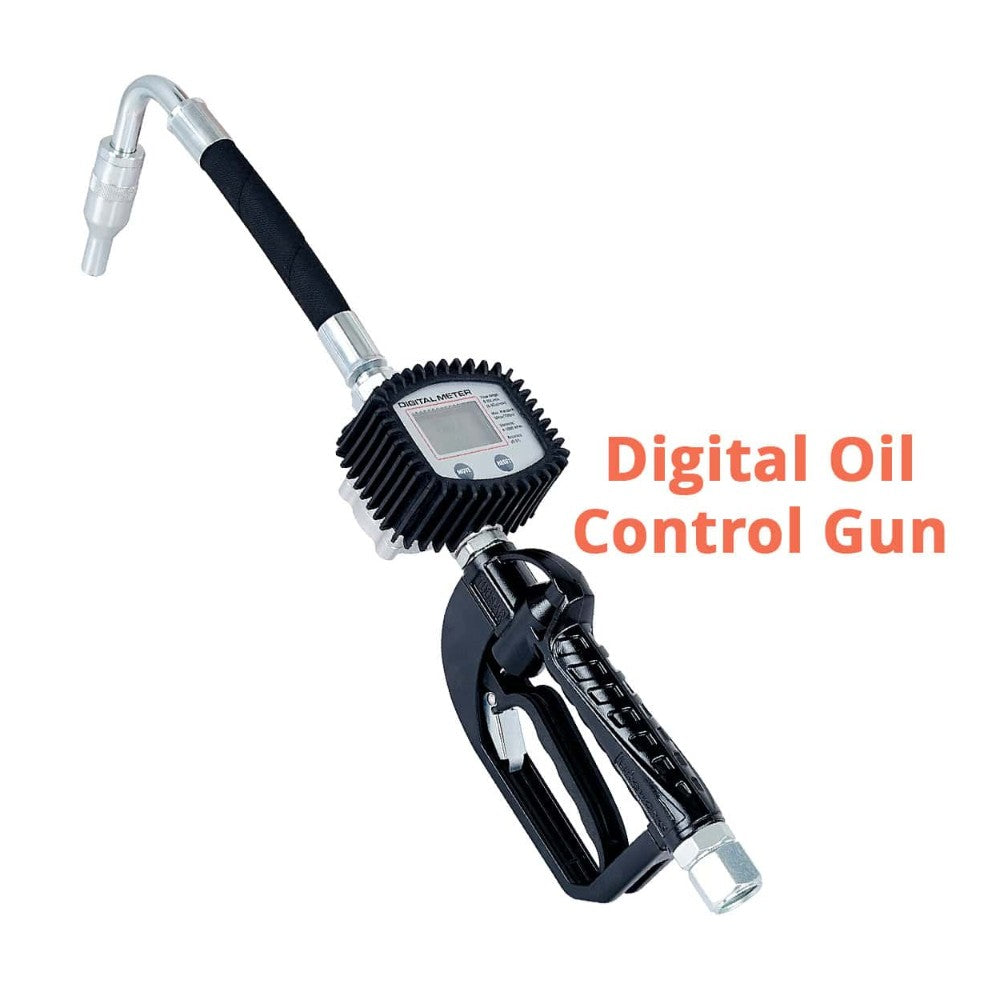

• 3 m delivery hose and digital nozzle

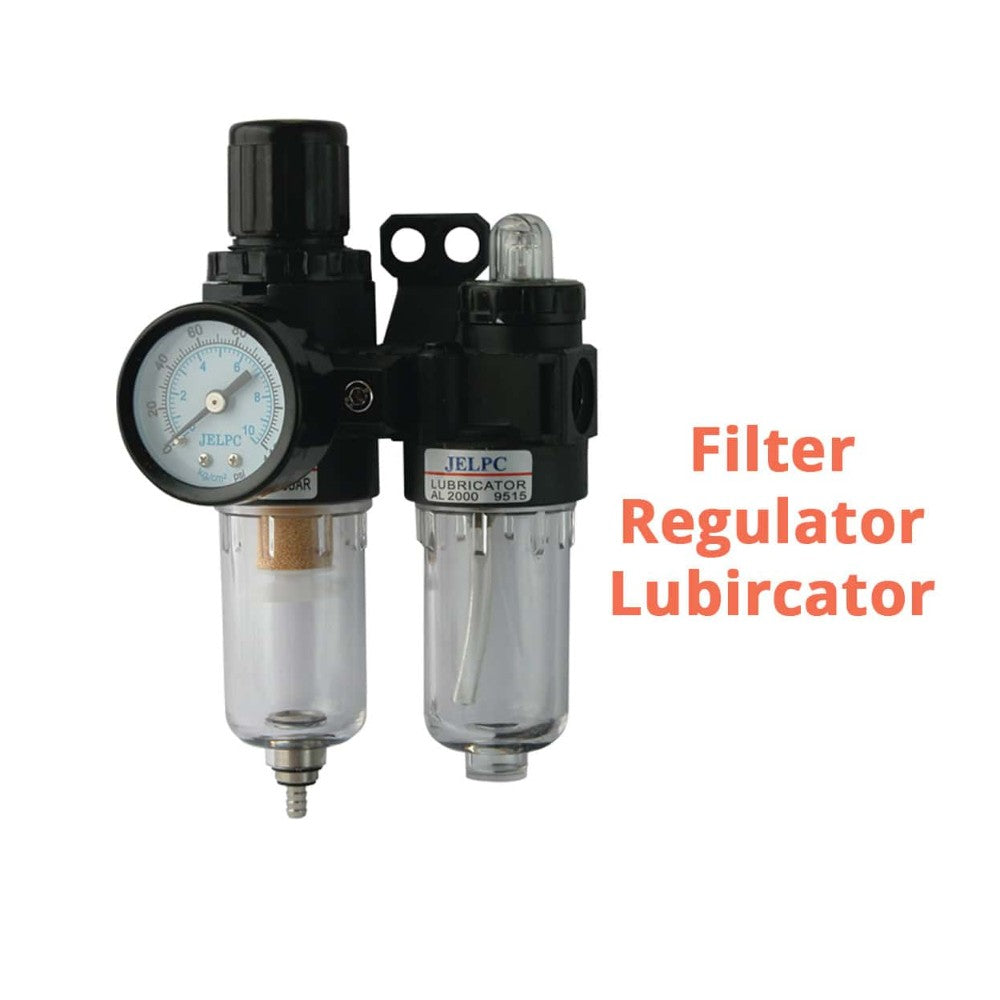

Air Regulator

• Operating fluid: air
• Adjustable pressure range: 0.5 – 8.5 bar
• Max. working pressure: 15 bar
• Inlet/outlet: 1/8″ – 1/2″ BSP
• Temperature range: 5 – 60°C
• Suggested lubricant: ISO VG32 or same grade oil
• Body/cup material: die-cast aluminium / PE
• Oil cup capacity: 25cc

Please note: you will need a compressed air supply and feed hose to run the pump. Download the selector guide from this page to compare all five kits.
