10,000 Litre Steel Bunded Oil Tank - Atlantis

10,000 Litre Steel Bunded Oil Tank - Atlantis

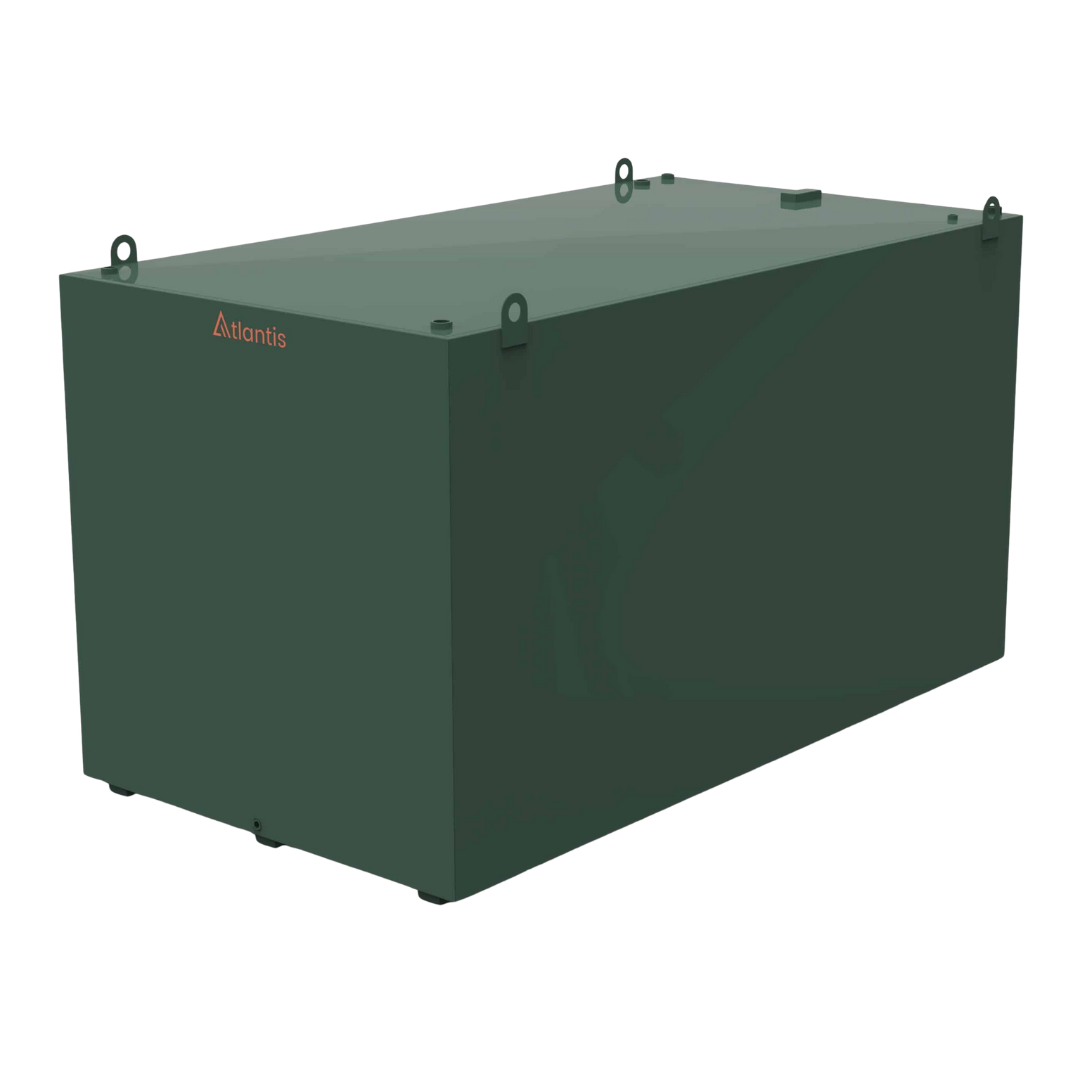

This Steel Bunded Oil Tank is perfect for domestic and commercial fuel storage applications. The primary (inner) tank securely holds the liquid, while the outer tank provides 110% bunding capacity, ensuring safe and compliant storage. It works well for heating oil, kerosene, diesel, waste oils, and other approved liquids (please check suitability before use).

Atlantis manufactures these steel bunded tanks to BS799 pt5 standards, offering reliable and long-lasting fuel storage. The steel thickness varies by tank size, and every tank undergoes pressure testing before leaving the workshop. Additionally, our tanks feature two coats of anti-rust coating, designed to maximize durability and protect your investment.

Compliance - This tank complies with Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5

Product Summary

• 10,000 litres (2200 gallons) capacity
• 2” fill point
• 2″ top socket as a spare connection
• 1″ bottom outlet
• 1.5″ port for a gauge
• 1.5″ port for bund gauge
• Tank to bund vent
• Bund vent
• 1″ top suction drain port
• 50mm x 100mm full-length bearers
• Pitched roof design
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green
• 10-year warranty, each tank is provided with a warranty manual
• UK Manufactured
• UV Stable

Recommended Base Size

Full installation instructions are supplied with the tank. Along with current regulations, we recommend a base size which extends 300mm all the way around the tank

• Length: 3950mm
• Width: 2430mm

Product Options

• Clock Gauge - Reads out the contents in increments of 1/4, 1/2, 3/4 and full. Easy to read and operate, this gauge requires no power and is a cost-effective solution.
• Advanced Filter Pack - This is a outlet kit which will allow you to connect the relevant pipework to the tank. It consists of a 1″ shut off valve which is fitted to the tank as a primary component, thus enabling the tank supply to be disabled should anything happen to the filter
• Apollo Visual Sonic Tank Contents Gauge - The Apollo visual sonic tank contents gauge is an electronic sonic gauge. It operates via a transmitter that sits on the tank and a receiver which plugs into a ‘mains’ socket inside your home.
•  Tank Security Lid - Designed to house all of the fittings excluding the vent on the top of the tank.
