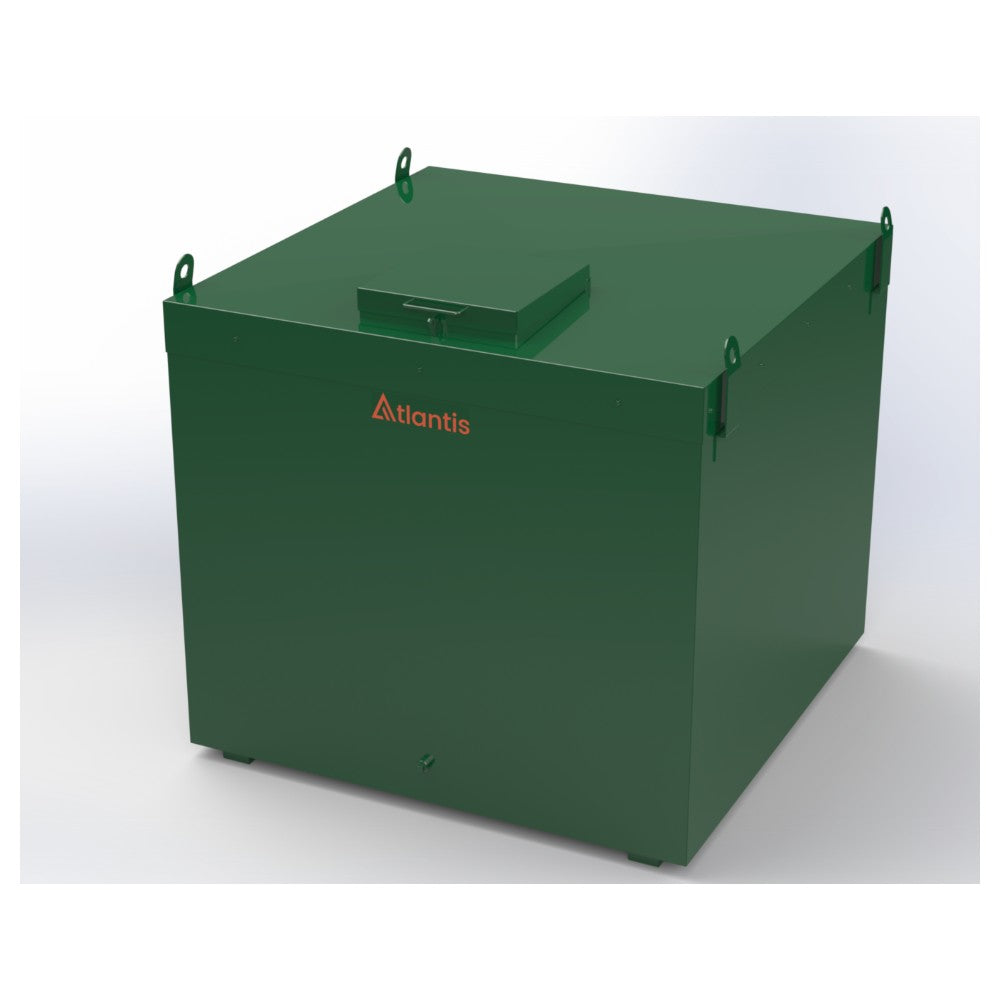

1800 Litre Triple Skinned Steel Bunded Oil Tank - 60 Minute Fire Protection

When an oil tank has to sit close to a building, boundary or escape route, this triple skinned Atlantis tank adds 60 minutes of built-in fire resistance. The steel inner tank and bund are wrapped in a non-absorbent fire barrier, all housed inside a third steel skin.

It suits heating oil, kerosene, diesel and waste oils on domestic and commercial sites. Please check compatibility for other liquids.

Key Details

• Capacity: 1800 litres
• 60 minute integral fire resistance
• Size: 1660 x 1660 x 1530 mm (add 115 mm to the height for the bearers and top box)
• Empty weight: 640 kg
• Spiral float contents gauge fitted as standard
• Holly green finish, built to BS 799 Part 5
• 10-year guarantee

Connections

• 2″ fill point socket
• Two 1.5″ sockets for tank and bund gauges
• 2″ tank-to-bund vent and 2″ bund vent
• 1″ bottom outlet socket
• 1″ top suction drain socket (plugged)

Base Requirements

Allow for a solid base that extends 300 mm beyond the tank on every side, so at least 2260 x 2260 mm.

Please note: outlet filter packs, an Apollo visual gauge and an overfill limiter are available as extras.
