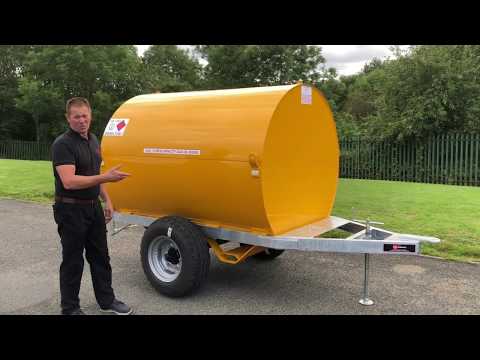

2140 Litre Bunded Diesel Site Tow Bowser
2140 Litre Bunded Diesel Site Tow Bowser
2140 Litre Bunded Diesel Site Tow Bowser
The 2140 Litre Bunded Diesel Site Tow Bowser is a robust, fully compliant fuel storage and dispensing solution designed for construction sites, plant hire operations, agriculture, and industrial environments. Engineered for safety, durability, and ease of transport, this towable diesel bowser combines a polyethylene inner fuel tank with a heavy-duty steel outer bund, delivering long-term protection against leaks, contamination, and environmental risk.
Fully UN certified for 10 years, this diesel site bowser is approved for both fuel storage and road haulage, making it ideal for demanding site conditions where reliability and compliance are essential.
Product Summary
- Bunded design with 110% containment for enhanced environmental protection
- UN1202 certified for road transport and fuel storage
- Heavy-duty towable trailer, fully welded and hot-dip galvanised
- Lockable rear access door for added security
- Four lifting points and fork pockets (tank only, when removed from chassis)
- Translucent polyethylene inner tank for easy fuel level monitoring
- Manual diesel dispensing system – simple, reliable, and low maintenance
Supplied as Standard
- 15ft delivery hose
- Manual shut-off trigger nozzle
- Contents gauge
- 2" fill point
- 2" vent
- Lockable bund enclosure
- Certified for diesel fuel (UN1202)
Technical Specification
Chassis: Fully welded 100 × 50 RSC steel chassis with front standing plate and A-frame drawbar, hot-dip galvanised.
Axle: Single solid beam axle with heavy-duty 6-stud hubs (205mm PCD) and taper roller bearings.
Wheels & Tyres: 10.75” × 15.3” flotation tyres fitted to 6-stud rims.
Coupling: 2” forged solid ring eye coupling.
Ancillary Equipment: Telescopic screw jack fitted to drawbar.
Pump: K2 semi-rotary hand pump with inline Y-strainer, 15ft × 1” hose and trigger nozzle, securely stowed within the lockable bund area.
Outer Bund Tank: Cylindrical steel bund with removable top section and lockable rear access door. Provides 110% containment to hinge line, with four lifting eyes and fork pockets (tank only when removed from chassis).
Inner Fuel Tank: Translucent heavy-duty polyethylene tank (980L capacity) with 2” filler cap and chain, 1” manual vent valve, top-mounted ½” BSP suction and return connections, base ball valve to pump, and pressure relief valve.
Dimensions
- Width: 1803mm
- Length: 3378mm
- Height: 1982mm
- Unladen Weight: 835kg
- Laden Weight: 2560kg approx – 3000kg max
Delivery Information
Customer to offload - forklift with extended forks will be required.
Couldn't load pickup availability
Product Specification
Product Specification
- Length: 3445mm
- Width: 1803mm
- Height: 1982mm
- Weight: 835kg
- Capacity: 2140 Litre
- Fuel Suitability: Diesel
