3:1 Air Operated Oil Pump and Air Regulator

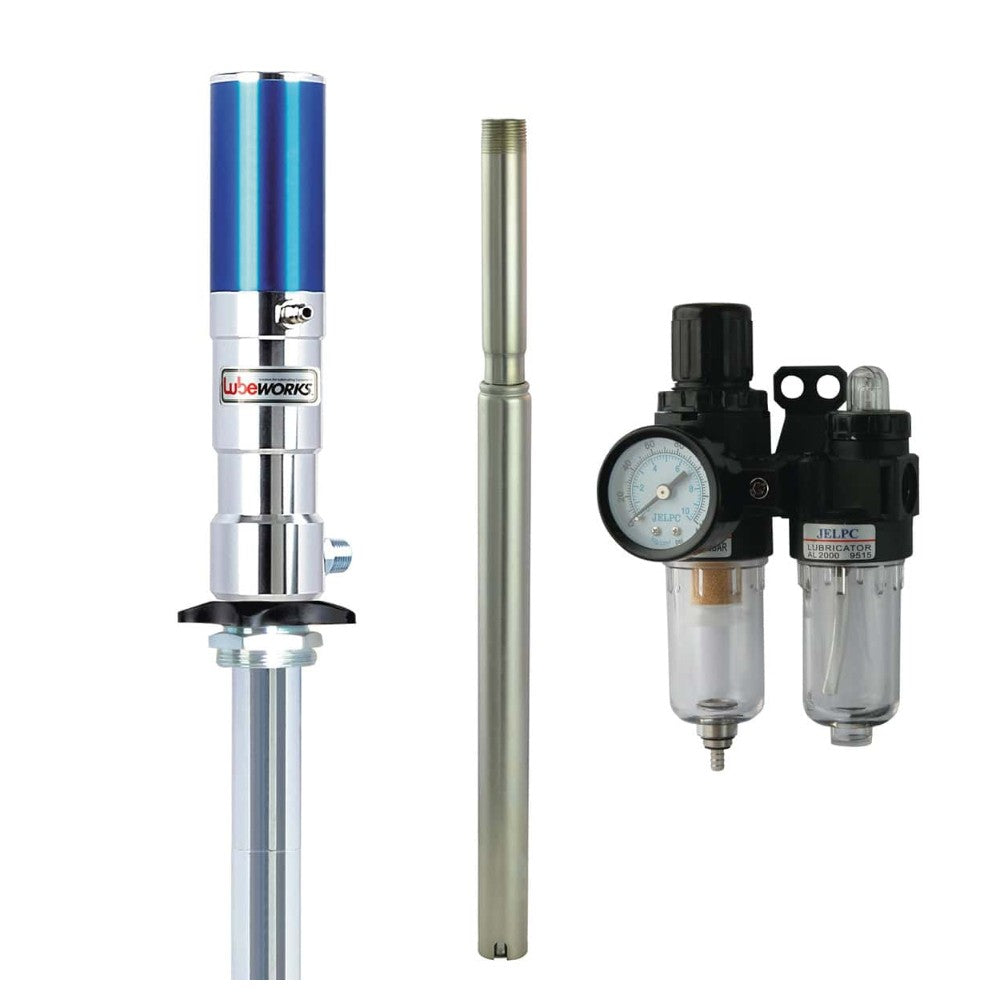

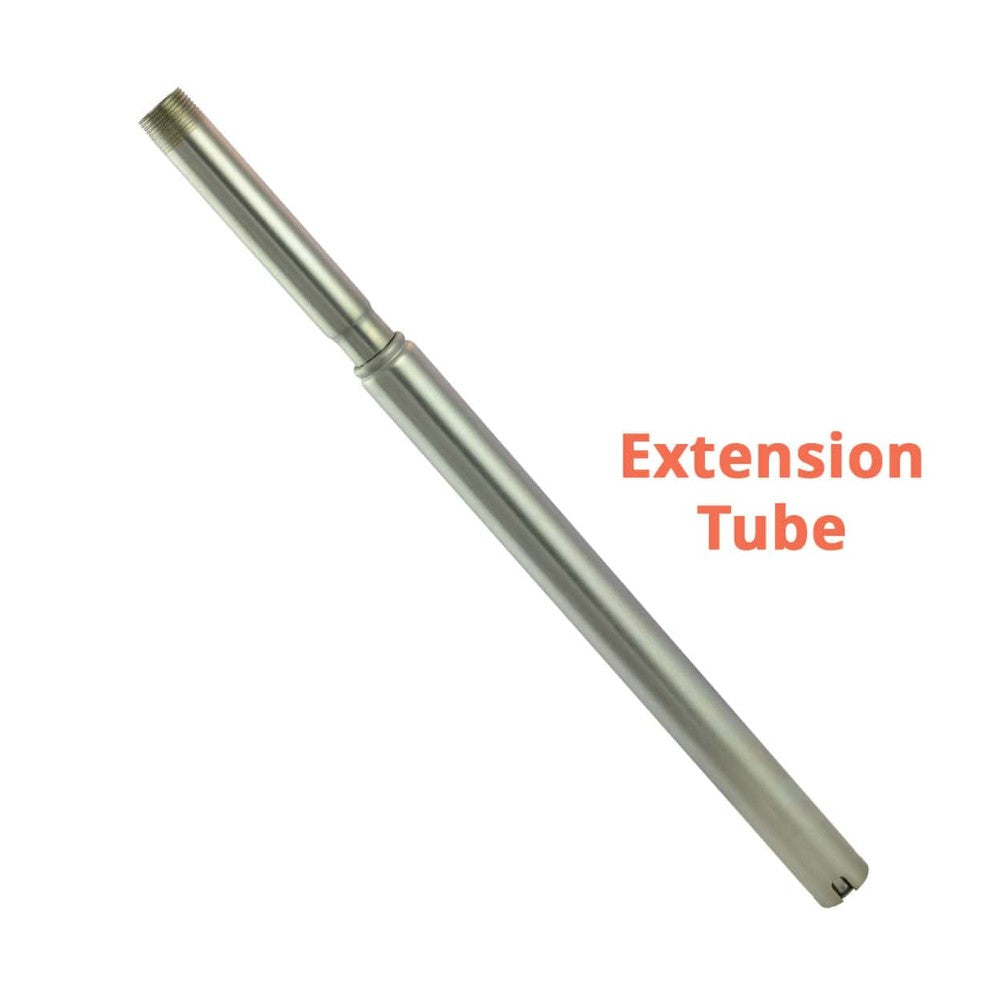

A compressed-air driven 3:1 lube oil pump made to fit the Atlantis Imperium® lube oil tank range. The low-noise air motor suits garages, fleet workshops, agricultural and plant workshops, and fast lube centres. The pump comes with an air regulator and suction extension tube; add your own delivery hose and nozzle.

3:1 Ratio Explained

The pump triples the incoming air pressure, giving enough push for low to medium viscosity oils over longer runs to several points around a workshop.

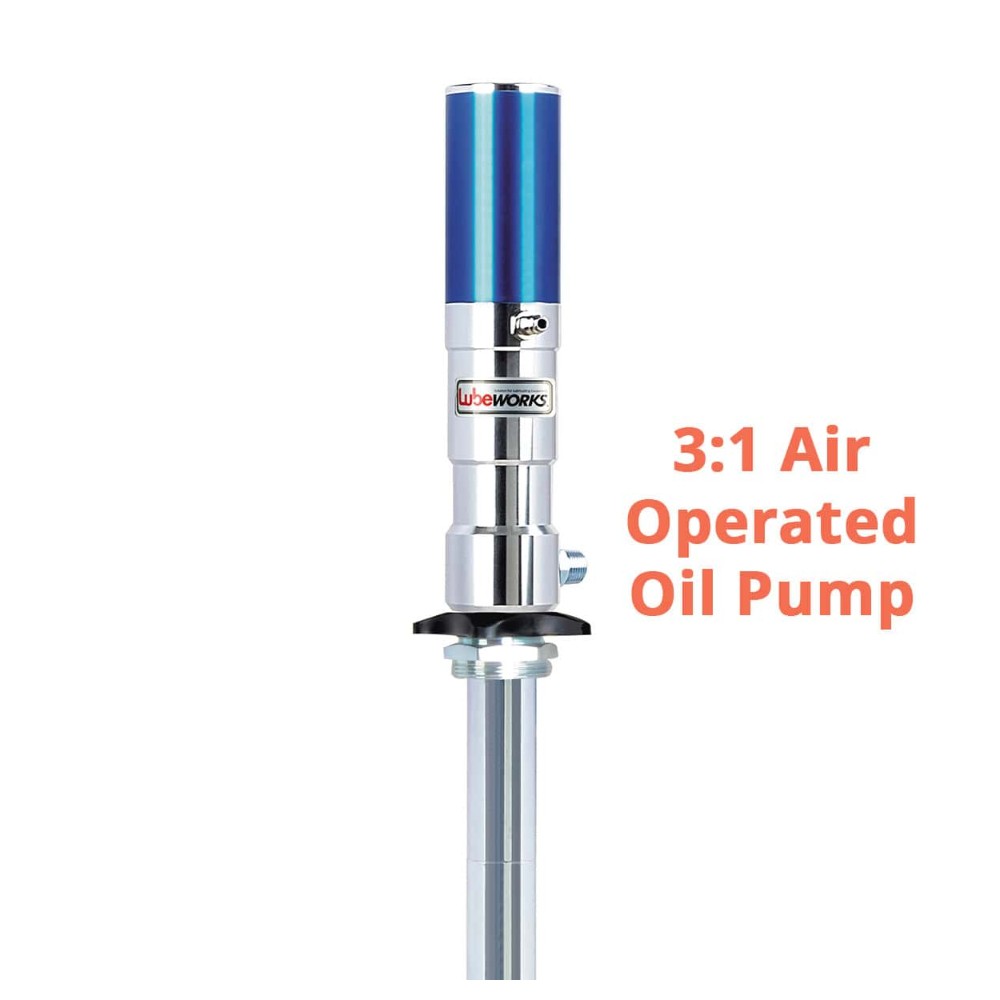

Pump Data

• Ratio: 3:1
• Working pressure: 2 – 10 bar (30 – 150 psi)
• Max. fluid pressure: 30 bar (450 psi)
• Air consumption: 100 L/min @ 10 bar
• Output capacity: 20 L/min
• Suction tube diameter: 42 mm
• Air inlet connection: 1/4″ quick plug
• Oil delivery connection: 1/2″ male
• Max. viscosity: SAE 130
• Tested with SAE 30 oil at 20°C through a 2 m hose, free outlet

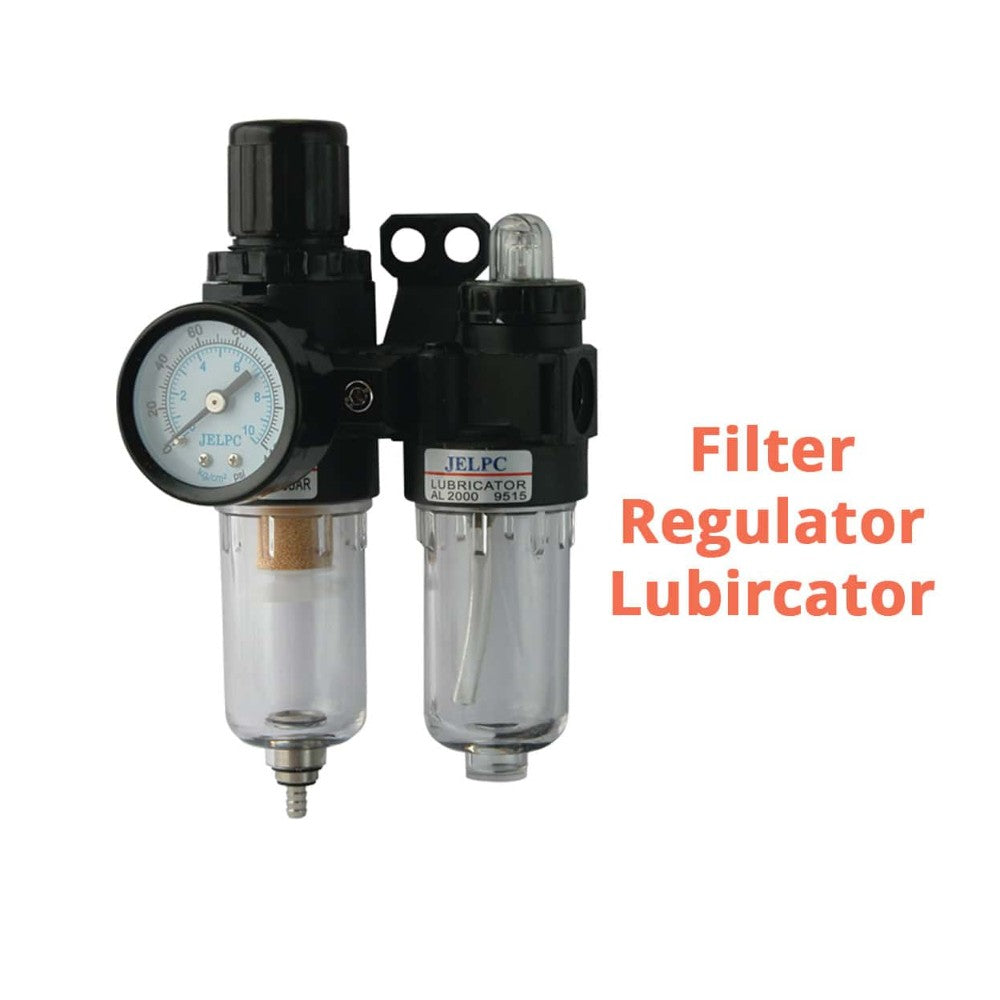

Air Regulator

• Operating fluid: air
• Adjustable pressure range: 0.5 – 8.5 bar
• Max. working pressure: 15 bar
• Inlet/outlet: 1/8″ – 1/2″ BSP
• Temperature range: 5 – 60°C
• Suggested lubricant: ISO VG32 or same grade oil
• Body/cup material: die-cast aluminium / PE
• Oil cup capacity: 25cc

Please note: you will need a compressed air supply and feed hose to run the pump. Download the selector guide from this page to compare all five kits.
