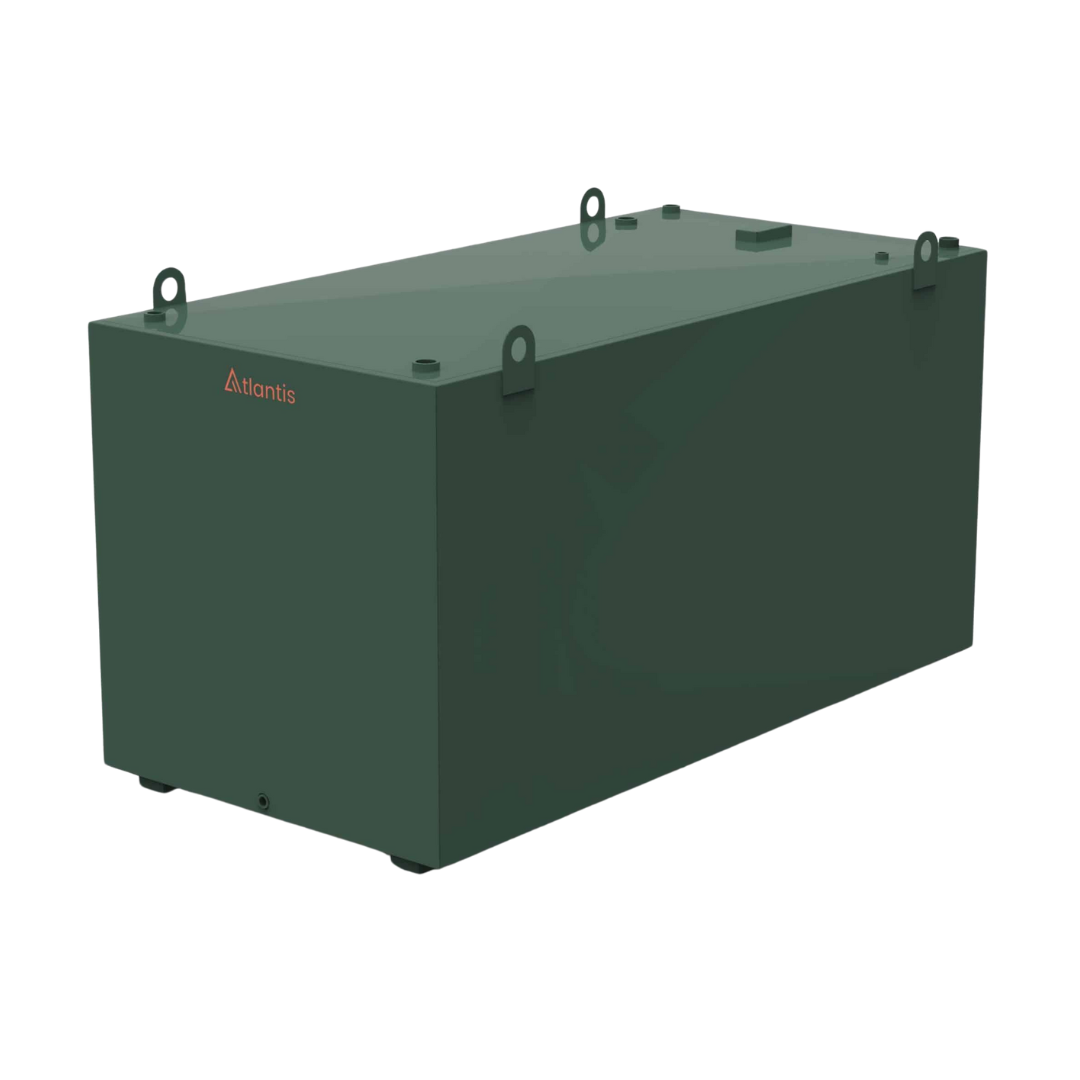

3000 Litre Steel Bunded Oil Tank - Atlantis

3000 Litre Steel Bunded Oil Tank - Atlantis

This Steel Bunded Oil Tank is suitable for both domestic and commercial applications. The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity. Suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids (please check before usage). These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop. Furthermore, these tanks are painted with 2 coats of our specially formulated anti rust coating system designed to give maximum protection.

Compliance - This tank complies with Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5

Product Summary

• 3000 litre (660 gallons) capacity
• 2” fill point
• 2″ top socket as a spare connection
• 1″ bottom outlet
• 1.5″ port for a gauge
• 1.5″ port for bund gauge
• Tank to bund vent
• Bund vent
• 1″ top suction drain port
• 50mm x 100mm full-length bearers
• Pitched roof design
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Holly Green
• 10-year warranty, each tank is provided with a warranty manual
• UK Manufactured
• UV Stable

Recommended Base Size

Full installation instructions are supplied with the tank. Along with current regulations, we recommend a base size which extends 300mm all the way around the tank

• Length: 3040mm
• Width: 1820mm

Product Options

• Clock Gauge - Reads out the contents in increments of 1/4, 1/2, 3/4 and full. Easy to read and operate, this gauge requires no power and is a cost-effective solution.
• Advanced Filter Pack - This is a outlet kit which will allow you to connect the relevant pipework to the tank. It consists of a 1″ shut off valve which is fitted to the tank as a primary component, thus enabling the tank supply to be disabled should anything happen to the filter
• Apollo Visual Sonic Tank Contents Gauge - The Apollo visual sonic tank contents gauge is an electronic sonic gauge. It operates via a transmitter that sits on the tank and a receiver which plugs into a ‘mains’ socket inside your home.
•  Tank Security Lid - Designed to house all of the fittings excluding the vent on the top of the tank.
