CTS Advanced Fuel Conditioning System - Tanks up to 40,000L
CTS Advanced Fuel Conditioning System - Tanks up to 40,000L
CTS Advanced Fuel Conditioning System - Tanks up to 40,000L

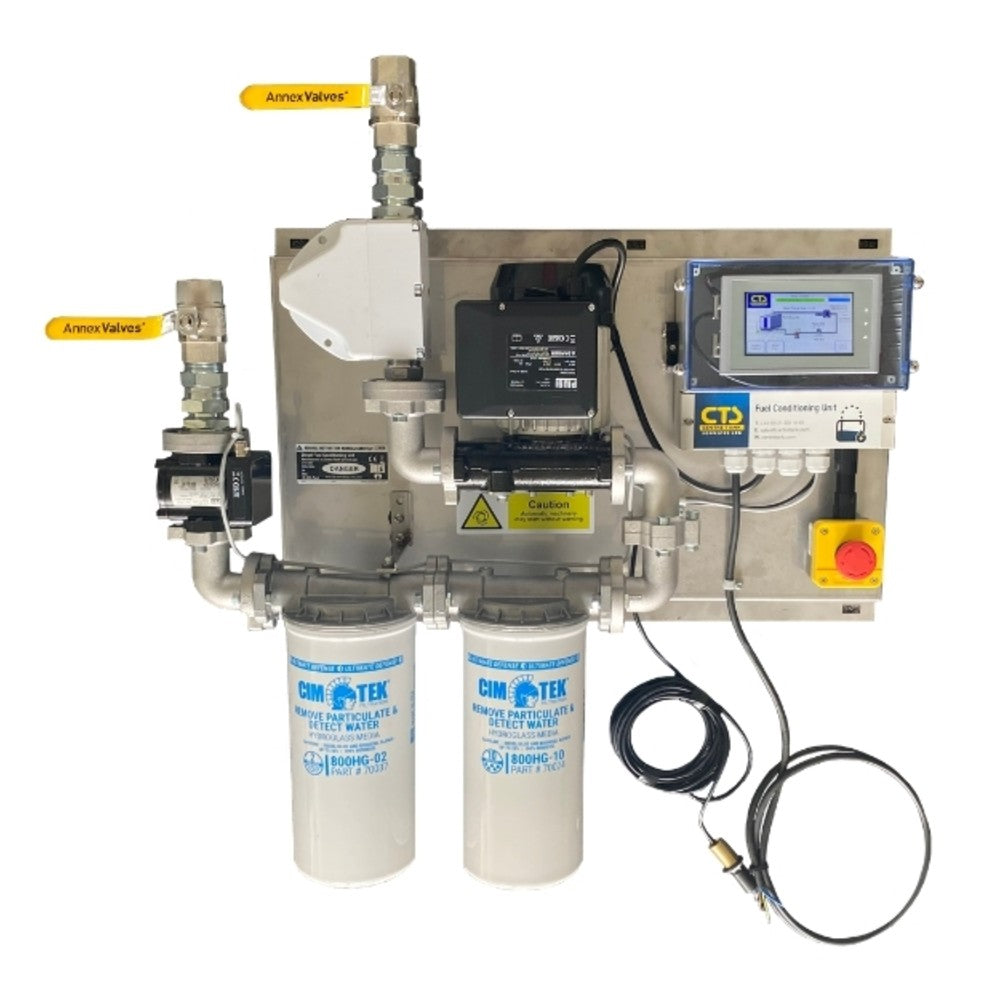

A fuel polishing system that keeps stored diesel clean in tanks that sit unused for long periods, such as generator back-up tanks. It pumps the fuel through a magnetic conditioner and two filter stages (10 and 2 micron), removing water to under 60ppm and keeping the fuel to ISO 14/13/11. A controller warns of filter blocks, low level and leaks, with outputs to a building management system.
Key Features
- Piusi Panther 56 pump
- Magnetic fuel conditioner
- Two-stage water and particle filtration - 10 and 2 micron
- Targets ISO 14/13/11 cleanliness
- Removes water to under 60ppm

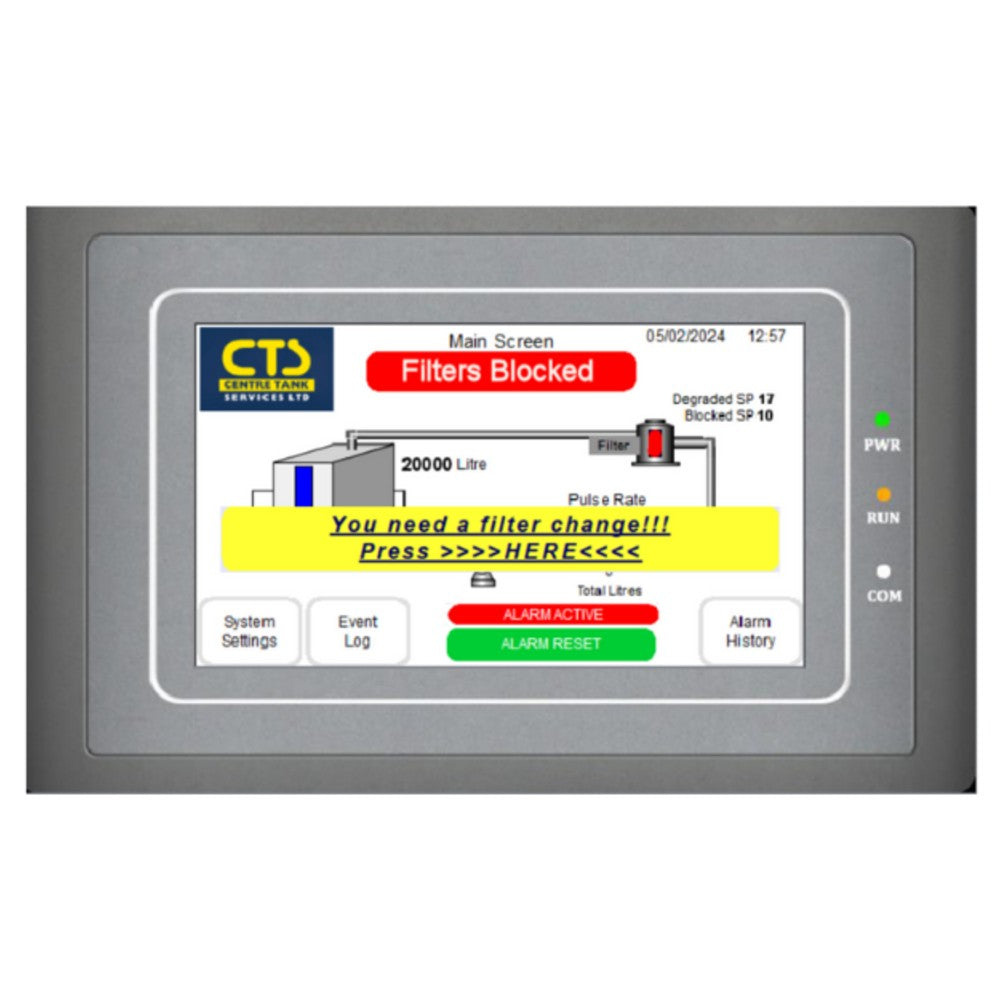

- Controller with filter block, low level and leak warnings
- Flow switch stops the pump if a filter blocks
- 2 BMS outputs for remote warnings
- Up to 3,000 litres per day
- Optional Modbus output and level gauge
- Diesel and HVO, 230V
Specifications
- Tank Size: Up to 40,000 litres
- Turnover: Up to 3,000 L/day
- Filtration: 10 + 2 micron water and particle
- Power: 230V
- Weight: 24 kg
- Suitable For: Diesel, HVO
Please Note
For tanks up to 40,000 litres. Installation by a competent engineer is recommended.
Couldn't load pickup availability
Product Specification
Product Specification
- Manufacturer: Centre Tank Services
- Fuel Suitability: Diesel, HVO
