CTS Mains Multi-Compartment Fuel Tank Alarm - Up to 3 Zones

CTS Mains Multi-Compartment Fuel Tank Alarm - Up to 3 Zones

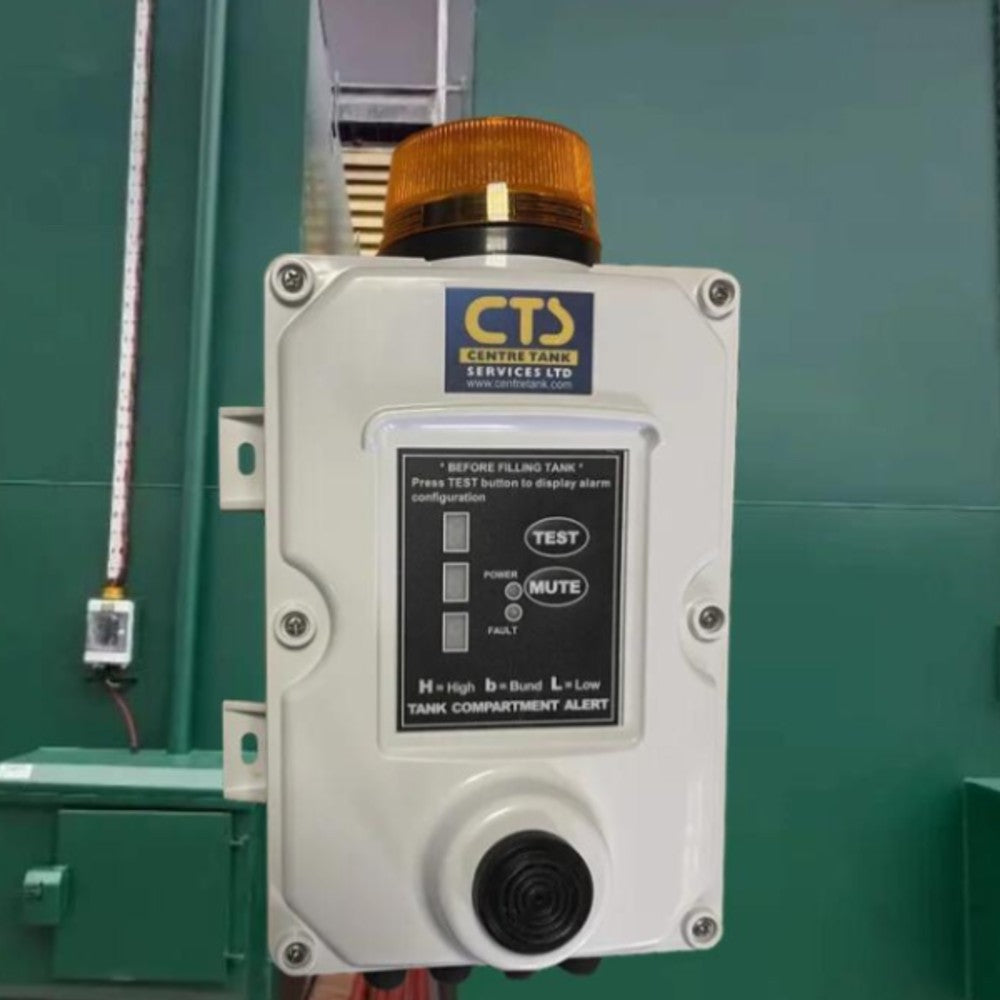

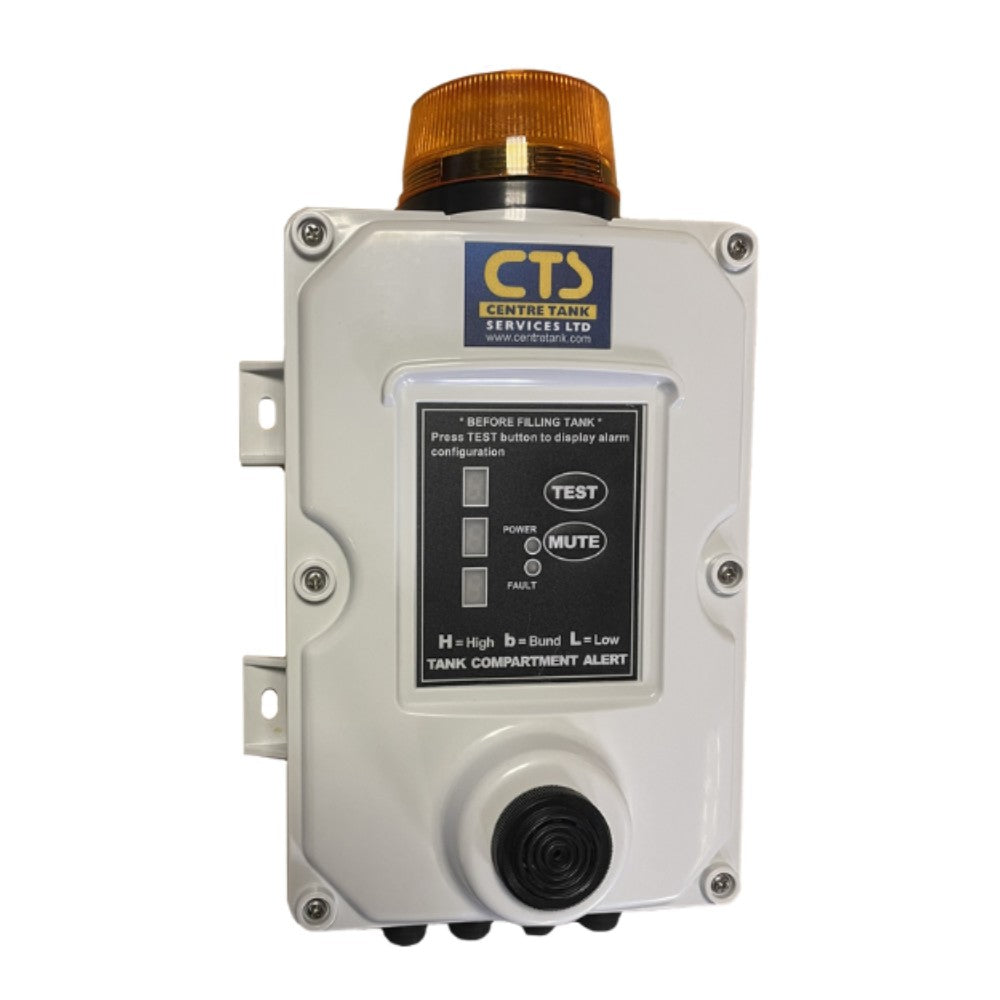

A mains-powered alarm panel that watches your fuel tank for overfill, high or low level and bund leaks from one unit. Each of the three channels can be set to high, low or bund, and when one triggers it lights up on the panel with a sounder and a flashing orange strobe that is easy to spot across a yard. It accepts 110V, 230V, 12V or 24V supplies, and the relay version can control a pump or day-tank system.

Key Features

• Up to 3 channels - any mix of high, low and bund
• LED channel display shows which alert has triggered
• 85dB sounder
• Test and mute buttons
• Float logic reverses automatically for low channels
• Weatherproof IP55 enclosure with external lugs
• Rain drip guard over the panel and sounder
• Option with 3 relays for pumps or a BMS
• Available with probes or as a box only
• Flashing orange strobe
• Accepts 110V, 230V, 12V or 24V supply
• Probe cable up to 95m

Specifications

• Power: 110V / 230V / 12V / 24V
• Channels: 3 - high, low or bund
• Sounder: 85dB with orange strobe
• Protection: IP55
• Max Probe Cable: 95m

Please Note

Box only versions are supplied without probes - add single or double probes to suit the alerts you need. Alarms should be installed by a competent person. Probes are set to the required trigger height on site.
