Fuel Tank Alarm Probe - Single or Double, 5m or 10m

Fuel Tank Alarm Probe - Single or Double, 5m or 10m

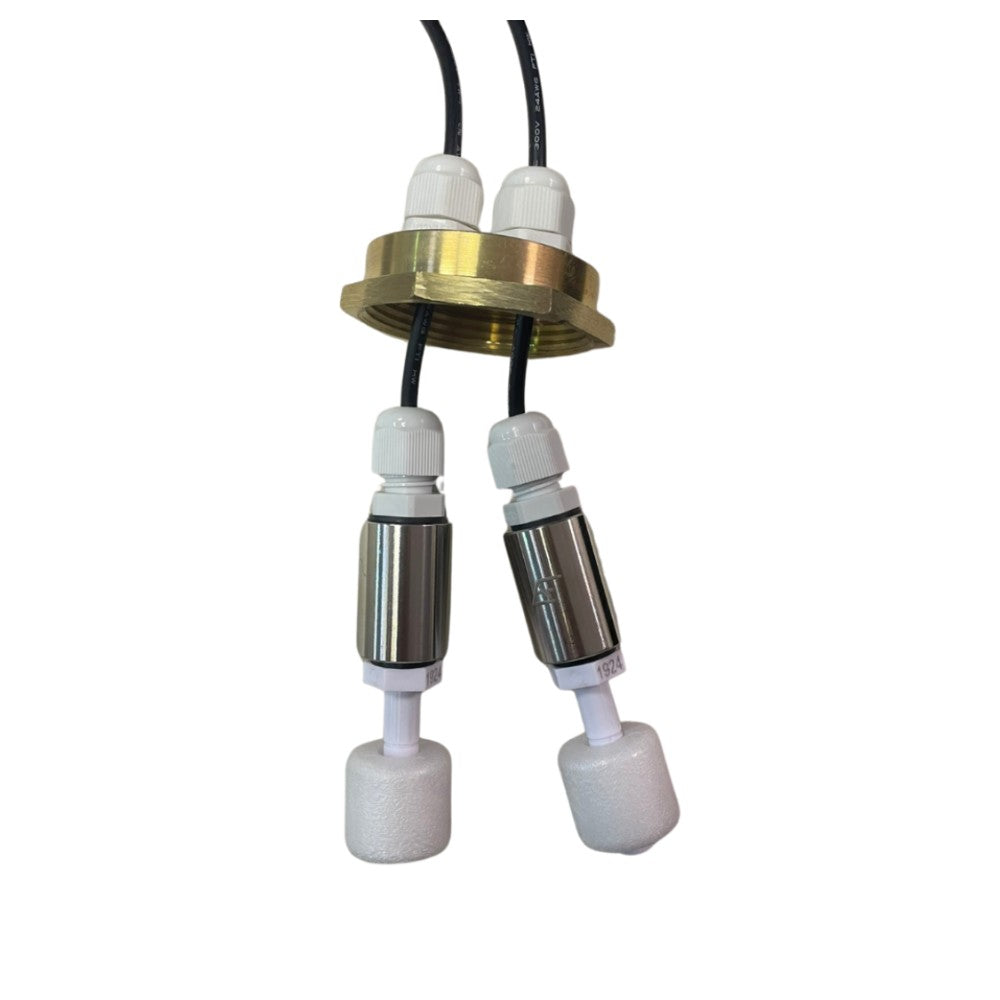

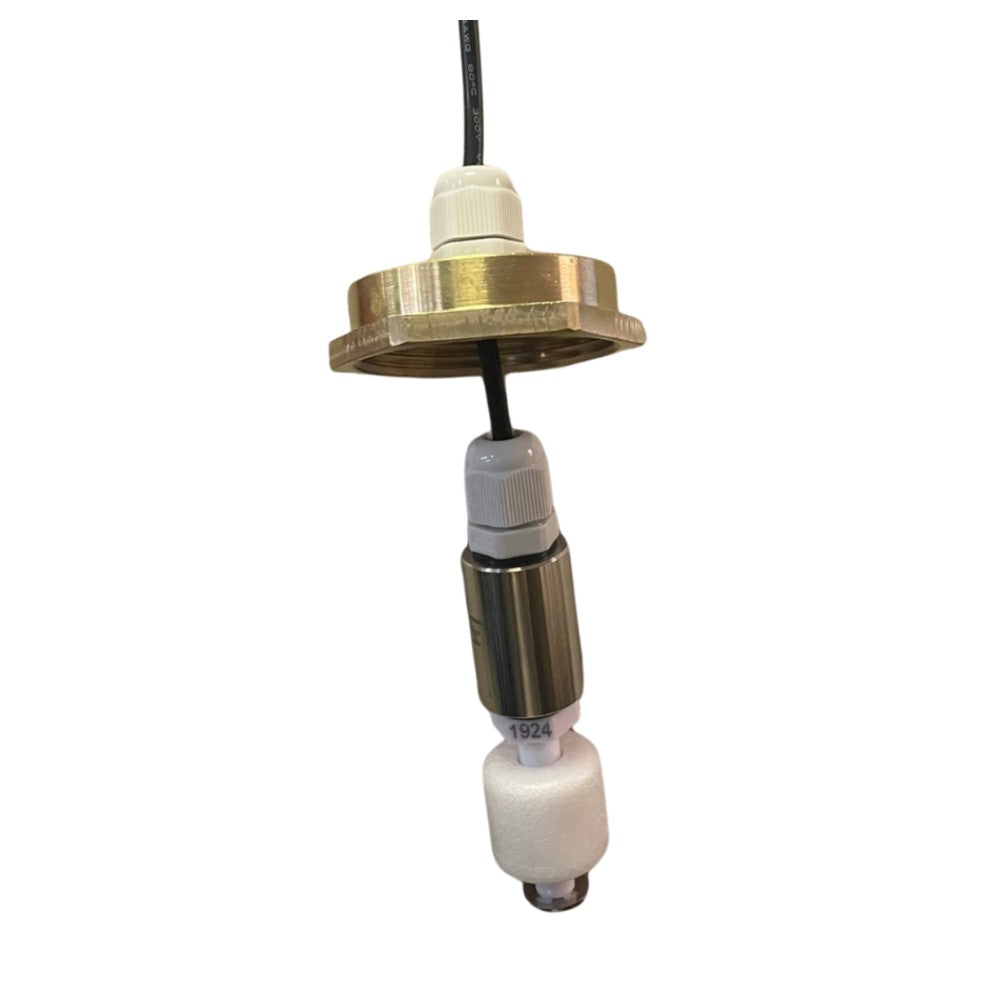

Replacement and add-on float probes for CTS mains and battery tank alarms. A single probe gives one alert - high level, low level or bund - while a double probe gives two levels from one fitting, usually high and low. For all three alerts, fit one double and one single probe. The float is reversible and each probe comes on 5m or 10m of cable with a 1 1/2" brass cap.

Key Features

• For CTS mains and battery tank alarms
• Single probe: high, low or bund alert
• Double probe: high/low, high/high or low/low
• 5m or 10m cable
• 1 1/2" BSP female brass cap
• Reversible float
• For diesel, fuels, light oils and water
• Temperature range -20°C to +80°C
• Also works with other reed-switch control inputs

Specifications

• Fitting: 1 1/2" BSP F brass cap
• Wetted Parts: PVC, PP, stainless steel, FKM, nylon
• Temperature Range: -20°C to +80°C
• Suitable For: Diesel, fuels, light oils, water

Please Note

The standard probe suits steel tanks - plastic tanks may need a different fitting, so ask us if unsure. For waste oil, AdBlue or chemicals, choose a specialist probe.
