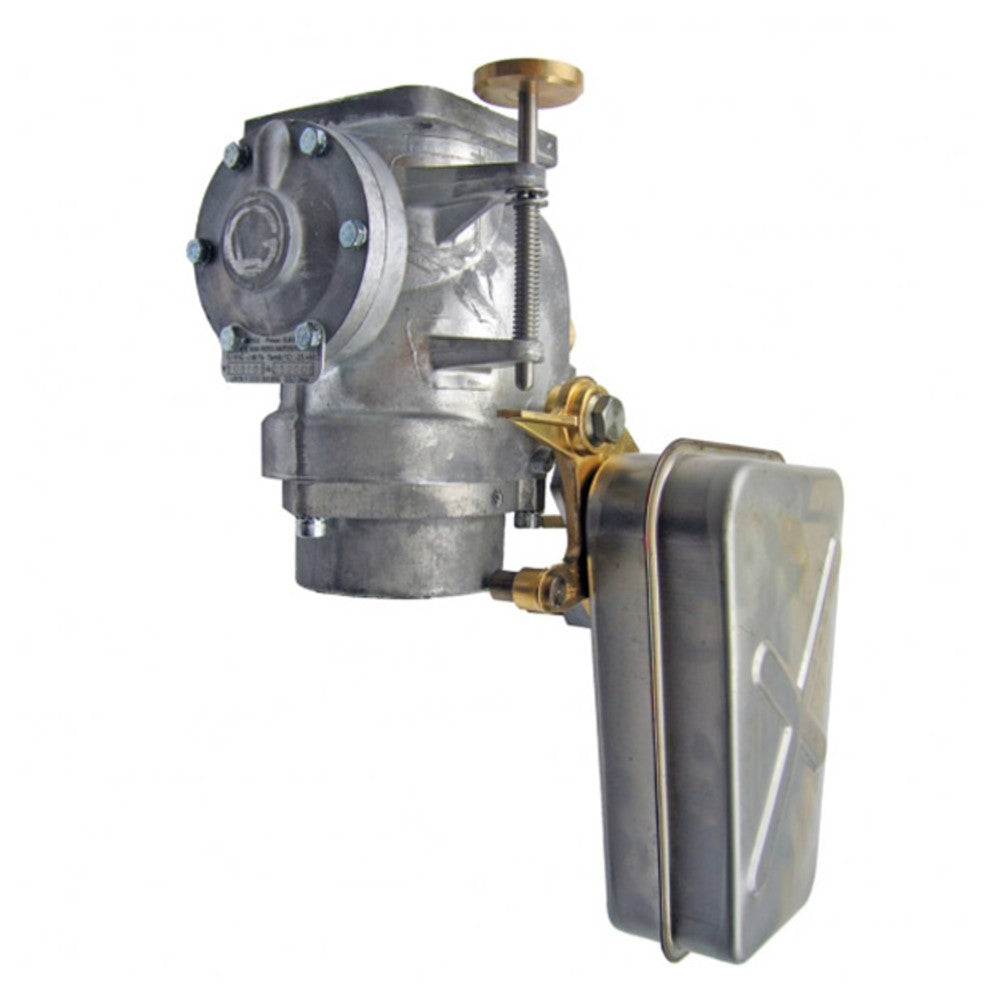

Lafon Solo Limiter 3" Overfill Prevention Valve - up to 1,000 L/min

Lafon Solo Limiter 3" Overfill Prevention Valve - up to 1,000 L/min

The Lafon Solo Limiter is a high-capacity overfill prevention valve for large above and below ground fuel storage tanks. Fitted in the fill line at the tank build stage, it closes automatically as the tank nears capacity, stopping the delivery before fuel can overflow and pollute the site. It handles gravity and pumped deliveries of diesel or unleaded at up to 1,000 litres per minute, and is ATEX approved for Zone 0.

Key Features

• Automatic overfill prevention
• Flow rates from 60 to 1,000 litres per minute
• Anti-vortex design prevents premature closing
• Re-opens in under 1 minute
• For gravity and pumped deliveries
• Diesel and unleaded petrol
• ATEX approved for Zone 0
• Accredited to EN13616 / KIWA BRL-K363

Specifications

• Connection: 3" BSP
• Flow Range: 60-1,000 L/min
• Pressure Range: 0.15-8 bar
• Working Temperature: -25°C to +60°C
• Approvals: EN13616, KIWA BRL-K363, ATEX Zone 0
• Suitable For: Diesel, unleaded

Please Note

Designed to be fitted when the tank is built. Valves should be fitted by a competent installer in line with the instructions.
