Normond Hydrostatic Fuel Tank Gauge - C Series & E Series

Normond Hydrostatic Fuel Tank Gauge - C Series & E Series

Normond gauges are heavy-duty hydrostatic contents gauges for larger fuel storage tanks. They need no electricity, so they are also suitable for hazardous areas, and the dial can be mounted up to 120m from the tank. The C Series is calibrated to your tank and reads in litres, for tanks up to 9 metres high. The E Series reads as a percentage, for tanks up to 3 metres high.

Key Features

• Hydrostatic contents gauge - no power needed
• Suitable for hazardous areas
• Can be mounted up to 120m from the tank

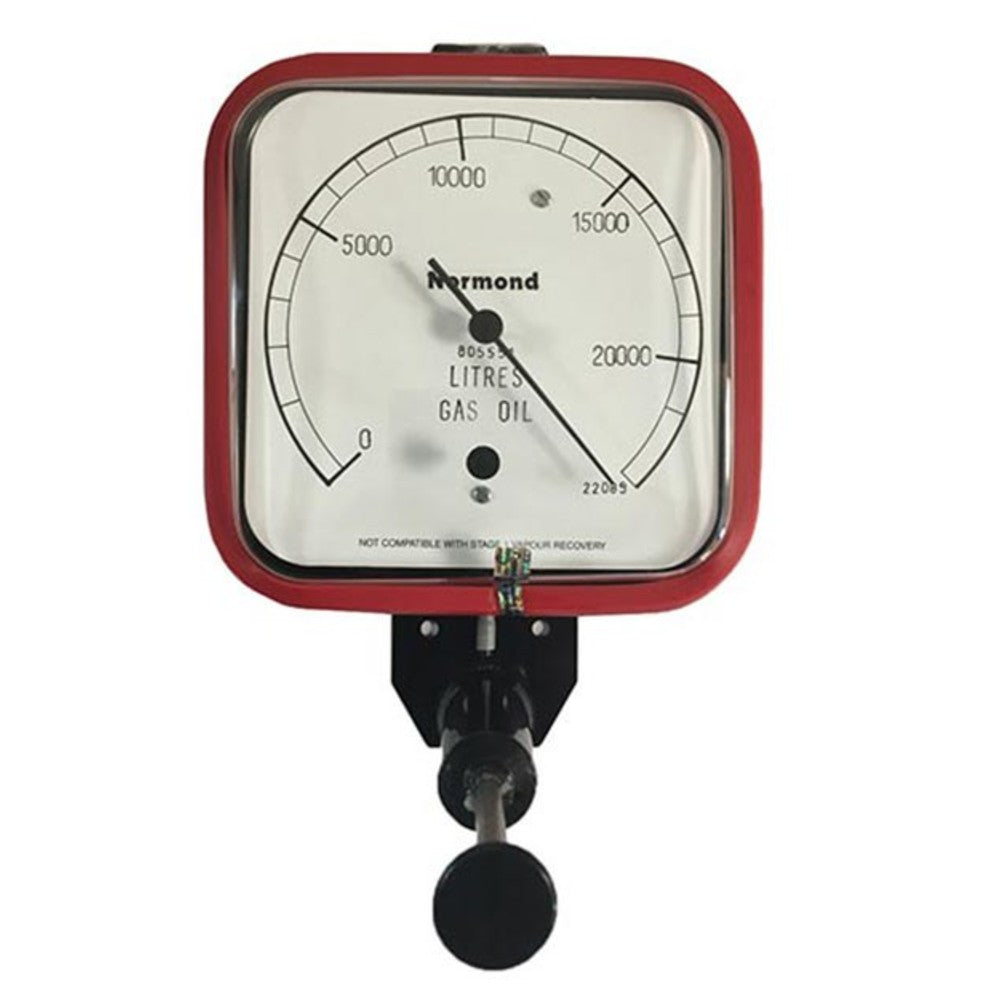

• C Series: calibrated litres reading, tanks up to 9m

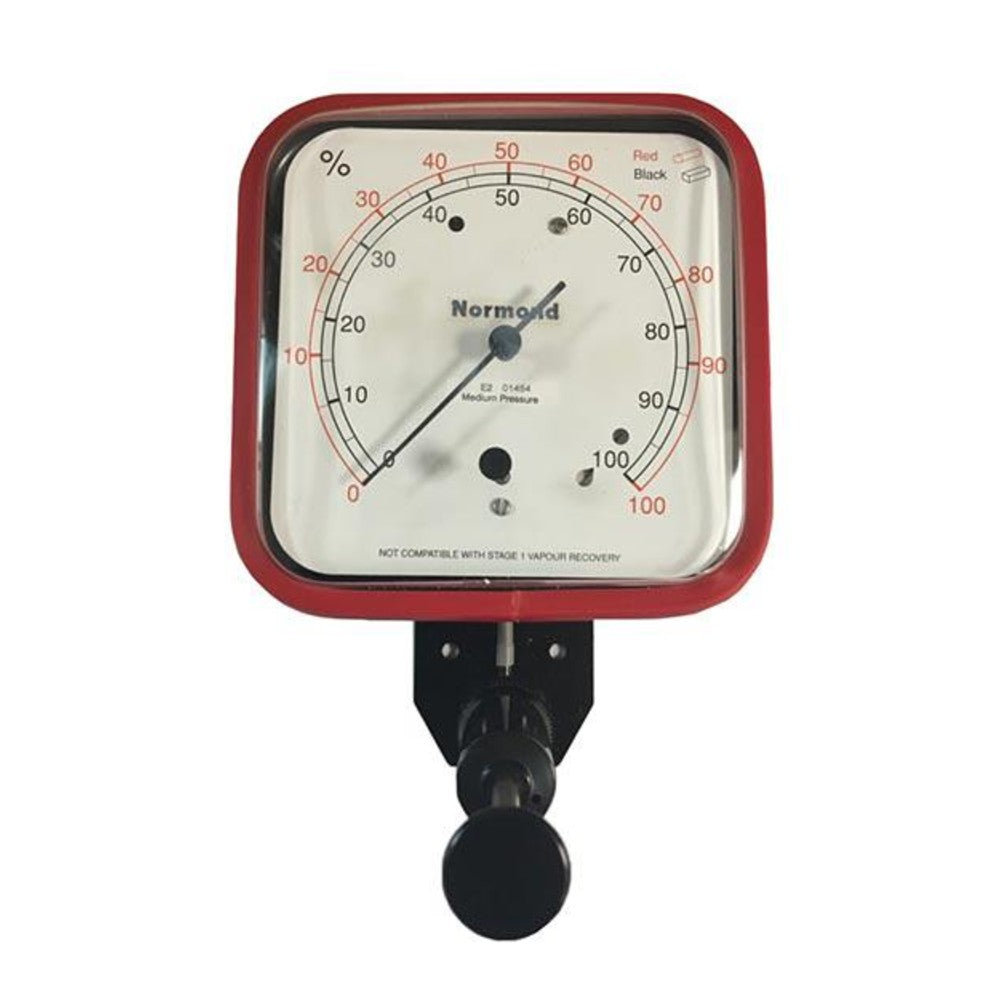

• E Series: percentage reading, tanks up to 3m
• Stainless steel weighted balance chamber
• PVC tubing
• 1/2" and 1" BSP balance chamber fitting
• For diesel, kerosene and other fluids

Specifications

• Type: Hydrostatic contents gauge
• Reading: Litres (C Series) or percentage (E Series)
• Max Tank Height: 9m (C Series), 3m (E Series)
• Max Distance: 120m
• Power: None needed
• Suitable For: Diesel, kerosene, other fluids

Please Note

Made to order and calibrated to your tank - after ordering we will send you a short tank questionnaire (tank shape, size and fuel). Allow 10-15 working days once the questionnaire is returned.
