Piusi Automatic Diesel Hose Reel - 3/4" or 1"

Piusi Automatic Diesel Hose Reel - 3/4" or 1"

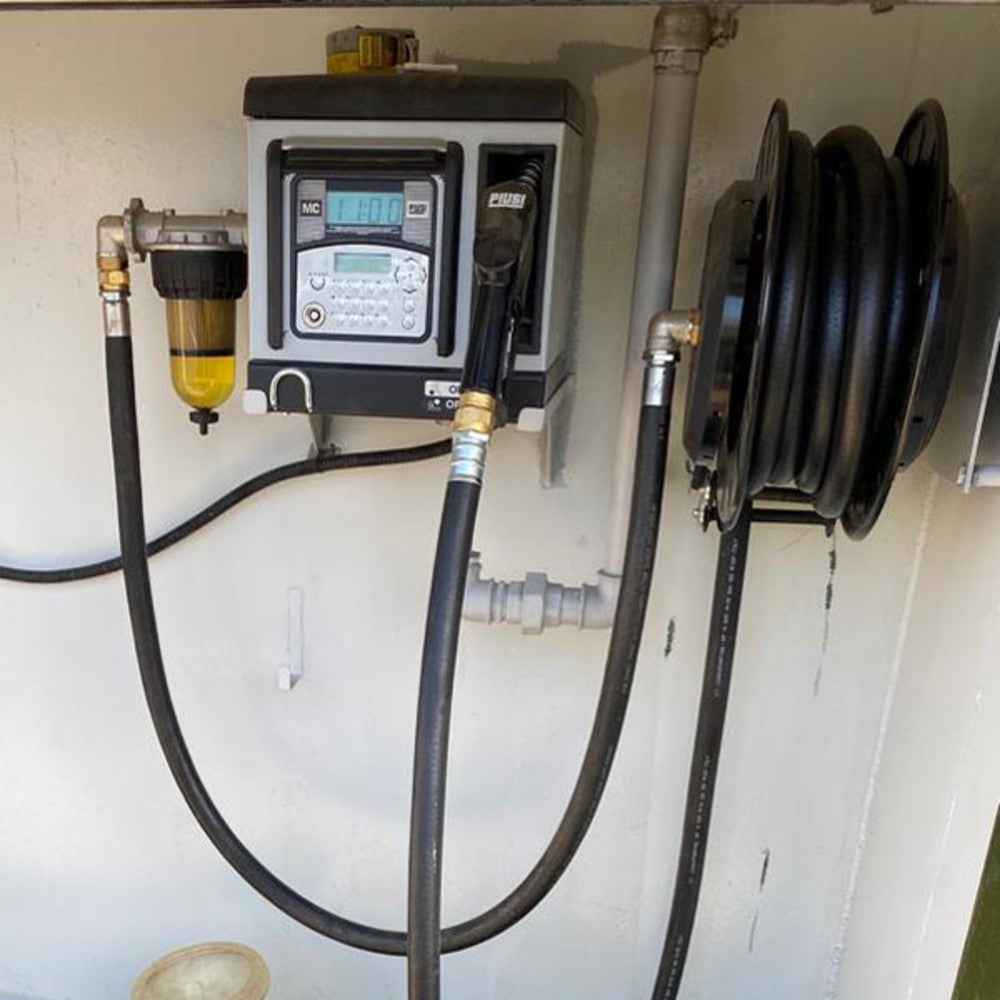

The Piusi automatic hose reel keeps your delivery hose tidy, protected and off the ground, and rewinds it automatically after refuelling. Built on a sturdy steel frame for low pressure diesel pumping systems, it is a favourite of bunded tank manufacturers for mounting straight onto the tank, and works just as well on a wall or in a pump cabinet. Choose a reel complete with hose, or an empty reel to fit your own.

Key Features

• Automatic spring rewind
• Sturdy painted steel structure
• Hydraulic sizing for reduced pressure loss
• Protected latch mechanism to prevent injury
• Hose stop to lock at the chosen length
• Adjustable arm brackets for easy positioning
• Optional fixed or rotating support plate
• 3/4" and 1" versions

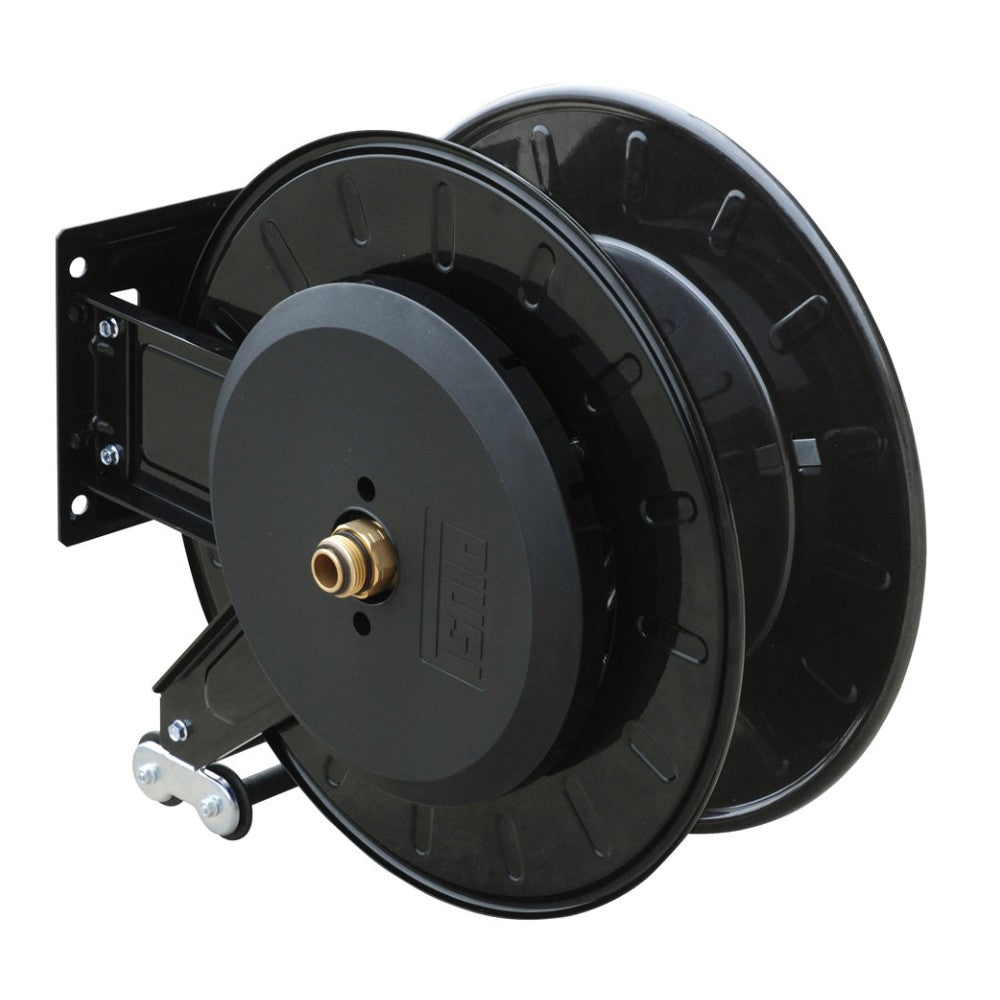

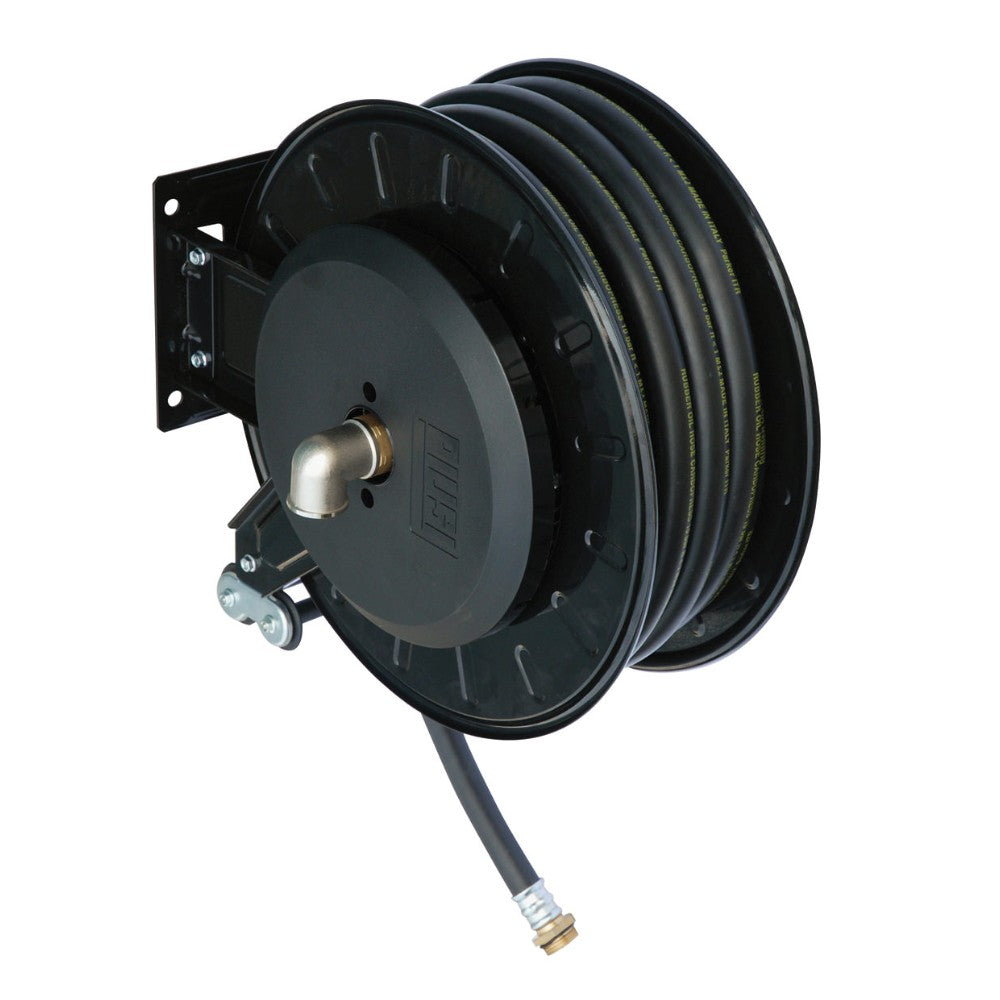

• Supplied with or without hose

Specifications

• Type: Automatic spring rewind
• Structure: Steel
• Bore: 3/4" or 1"
• Hose Capacity: Up to 9.5m, 10m, 14m or 15m
• Suitable For: Diesel, low pressure systems

Please Note

Hose reels must be securely mounted to a wall, frame or tank before use. The empty reels are supplied without hose - check the maximum hose length for your chosen reel before ordering hose.
