Piusi Cube 70 MC Fuel Management System - Diesel Dispenser

Piusi Cube 70 MC Fuel Management System - Diesel Dispenser

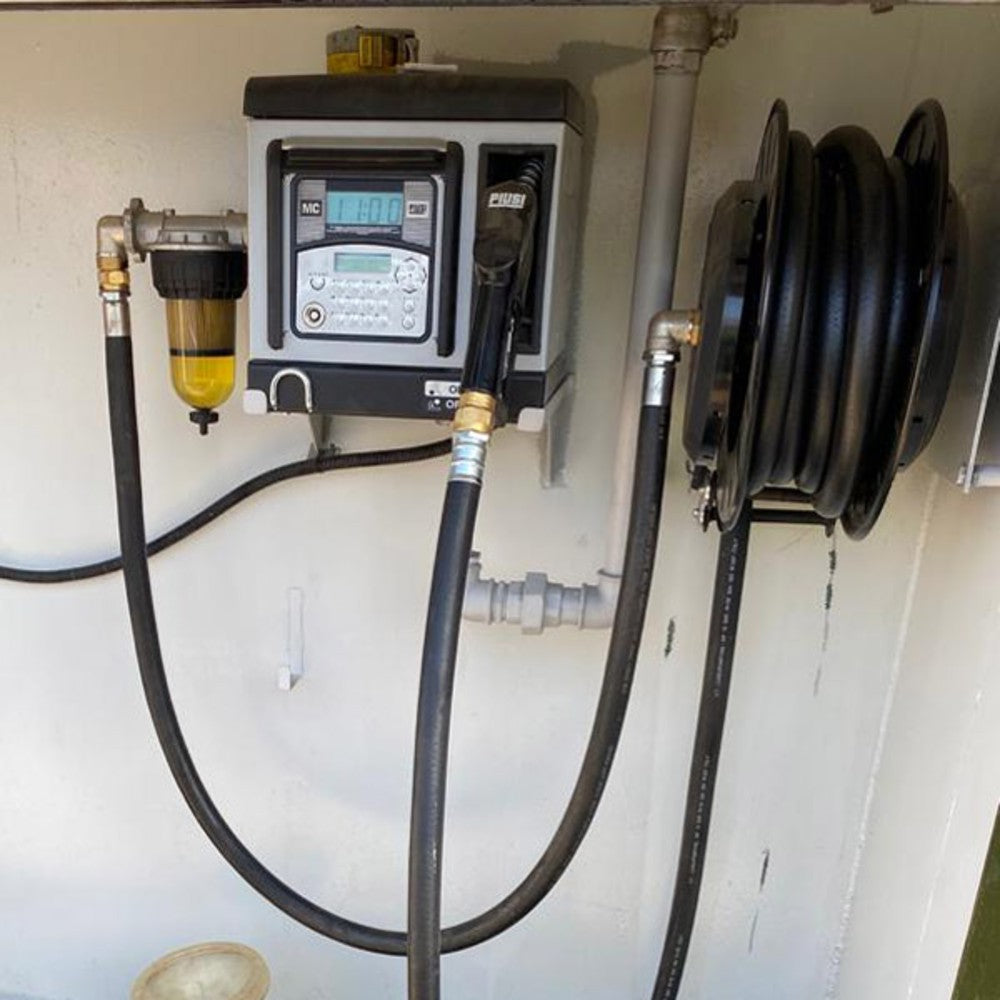

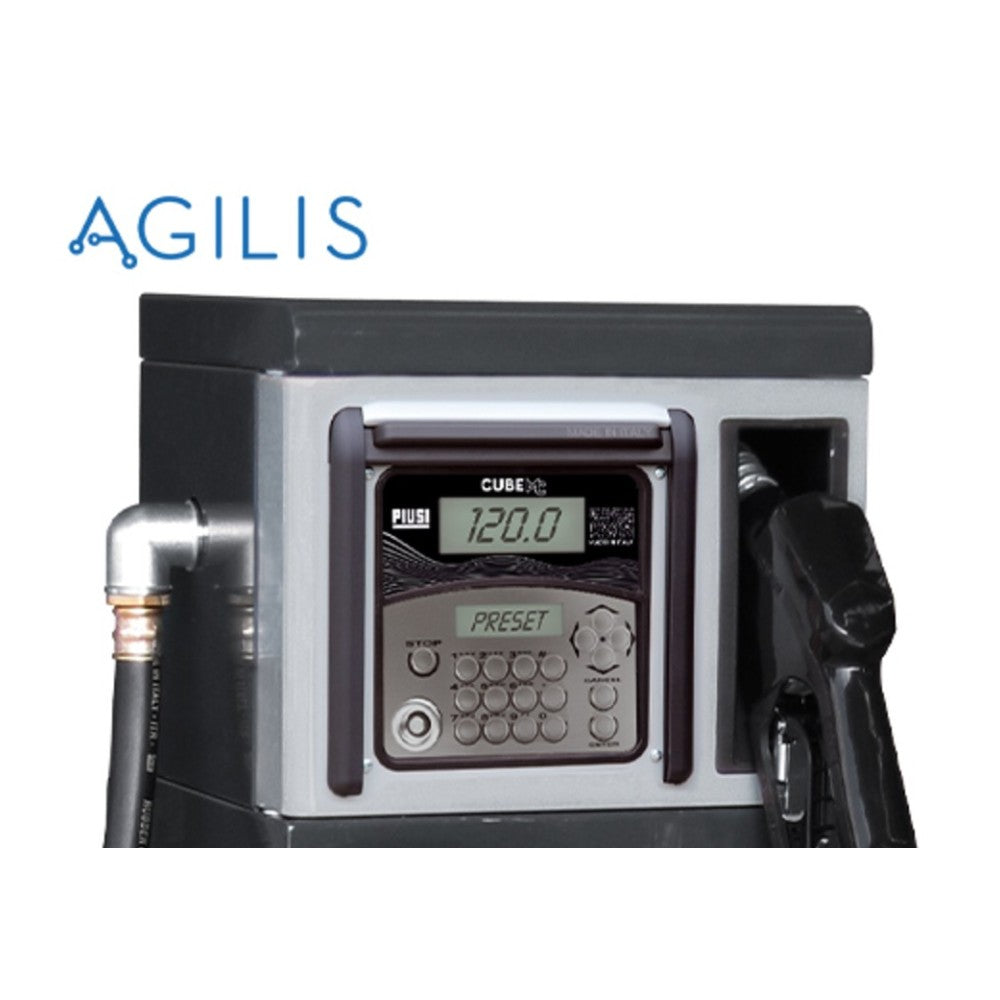

The Piusi Cube 70 MC is a compact, all-in-one diesel dispenser with built-in fuel management - pump, meter, automatic nozzle and hose in one weatherproof unit that fits on a wall, on the tank or on a pedestal. A fuel management system stops fuel going missing - only authorised drivers can use the pump, and every fill is logged with who, when, which vehicle and how many litres. Drivers unlock it with a PIN code or electronic key, and the unit stores the last 255 fills, viewable on its screen.

Key Features

• Complete diesel dispenser with fuel management
• Up to 70 litres per minute (56 L/min on 12V)
• Controls up to 80 or 250 users
• Access by PIN code or electronic key
• Records user, date, time and litres
• Can record vehicle reg and mileage
• Stores the last 255 transactions
• Preset dispensing and pump start/stop
• Automatic nozzle with holster
• 4m x 1" delivery hose
• Can connect to a Piusi Ocio tank gauge
• Wall, tank or pedestal mounting
• 230V, 12V or 24V

Specifications

• Flow Rate: Up to 70 L/min
• Pump: Piusi Panther
• Meter: K600/3 pulse meter
• Users: 80 or 250
• Memory: 255 transactions
• Hose: 4m x 1"
• Inlet: 1" BSP Female
• Power: 230V, 12V or 24V
• Suitable For: Diesel, HVO

Please Note

User keys are optional - drivers can use a PIN code instead. Software to download the data to a PC is available separately (Piusi AGILIS software). Pedestal and wall kit available - please ask.
