Piusi OCIO Electronic Fuel Tank Gauge - Diesel or AdBlue

Piusi OCIO Electronic Fuel Tank Gauge - Diesel or AdBlue

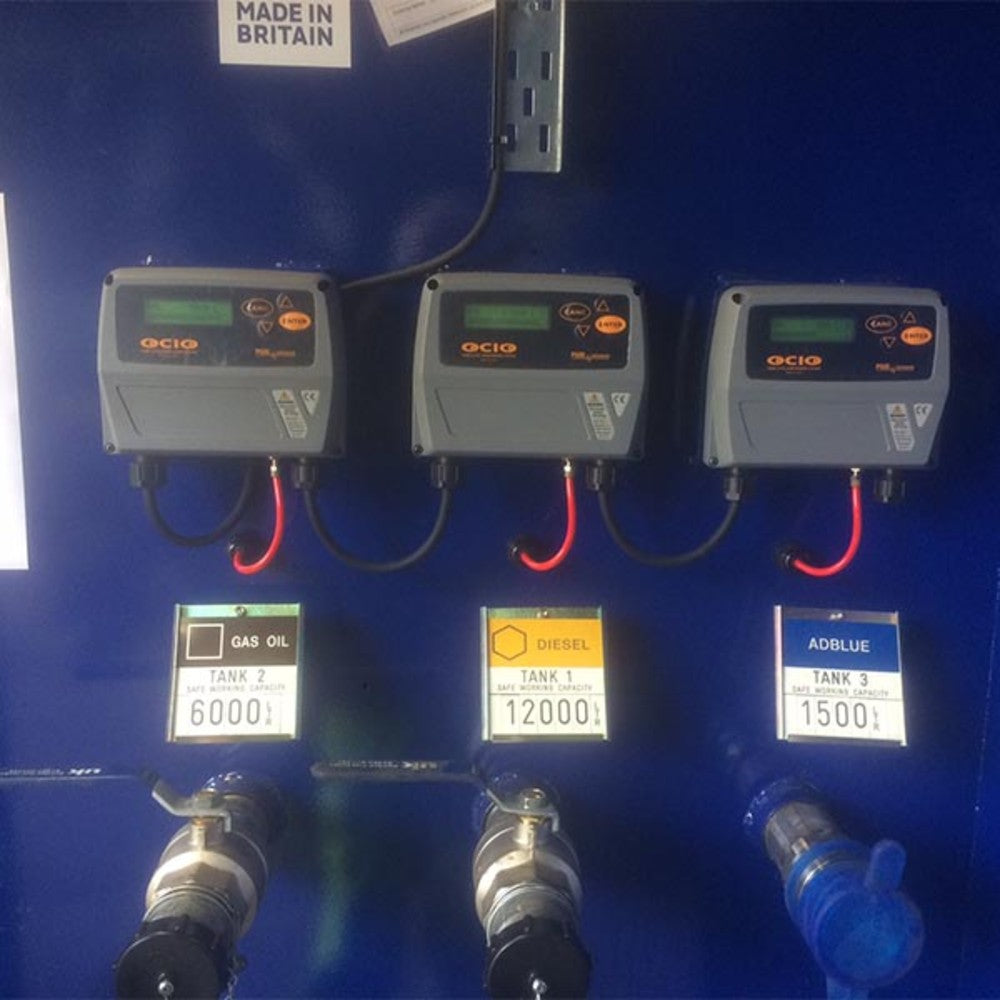

The Piusi OCIO is a digital tank gauge that shows how much is in your tank in litres, percent or mm, continuously. Once set up with your tank size, you can set high and low level warnings - the screen flashes, and two relays can switch an alarm, a pump or a building management system. It suits vertical, horizontal and rectangular tanks 600mm to 4m high, and the display can be up to 50m from the tank.

Key Features

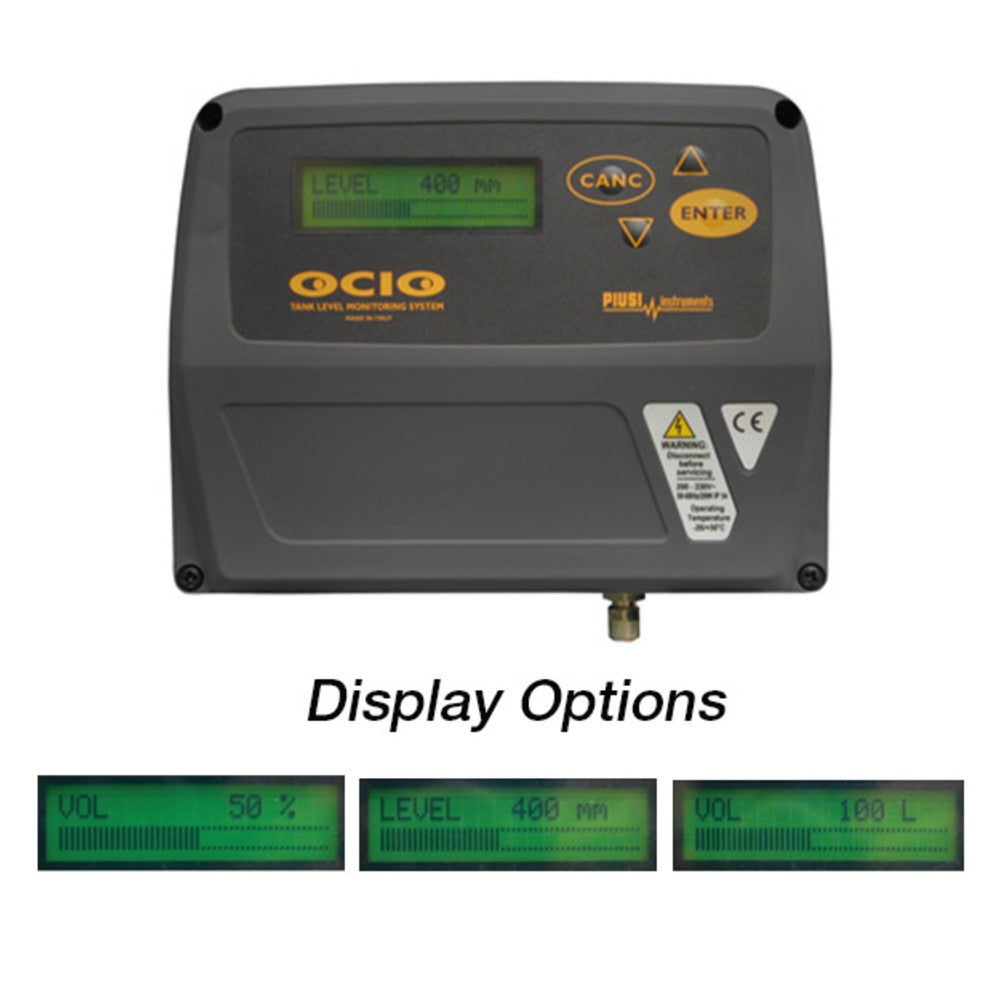

• Digital contents reading in litres, % or mm
• Continuous reading
• Set high and low level warnings
• Two relays to switch an alarm, pump or BMS

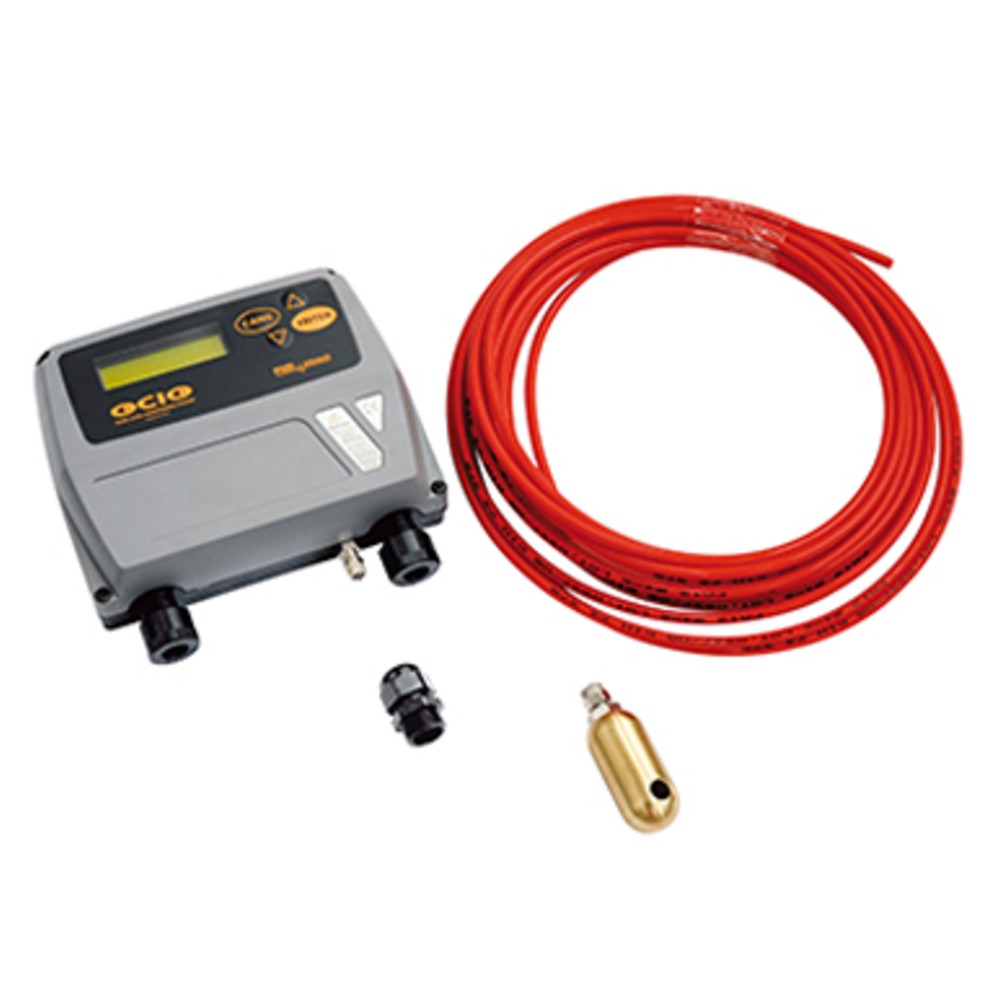

• Tank probe with 10m tubing
• For tanks 600mm to 4m high
• Accuracy +/-1%
• IP54 rated
• Diesel or AdBlue versions, 230V or 110V
• 4-20mA version sends live levels to a BMS
• Optional OCIO Desk PC software

Specifications

• Type: Electronic hydrostatic gauge
• Reading: Litres, % or mm
• Tank Height: 600mm to 4m
• Accuracy: +/-1%
• Outputs: 2 relays (4-20mA on 4-20mA model)
• Protection: IP54
• Power: 230V or 110V
• Suitable For: Diesel, water or AdBlue (by version)

Please Note

Needs a tank opening of at least 30mm for the probe weight. For HVO the gauge needs re-setting for its lower density (see the manual). For B.SMART systems choose the OCIO 2.0.
